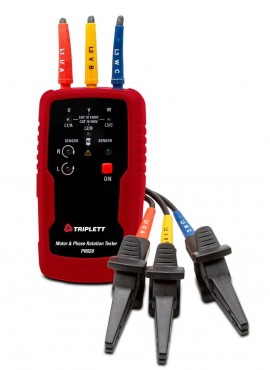

Triplett PR650 Non-Contact 3-Phase Sequence and Motor Tester, 45 to 66 Hz, 70 to 1000 V AC

Model: PR650 | UPC: 614395005078

Triplett PR650 Non-Contact 3-Phase Sequence and Motor Tester, 45 to 66 Hz, 70 to 1000 V AC

Model: PR650 | UPC: 614395005078

Designed to determine the correct phase wiring sequence (L1, L2, L3) for 3-phase system installations, this meter identifis contact or non-contact motor-rotation direction.

Sale Price	$201.13 USD
Regular Price	$252.99 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Triplett PR650 Offers

The Triplett Model PR650 Motor and Phase Rotation Tester comes with color-coded test leads for easy connection to the system or motor under test. The LEDs display phase direction (clockwise/counter-clockwise) and indicate which phases are live.

Features

Phase wiring sequence: Determines correct phase wiring sequence (L1, L2, L3) for 3-phase system installations
Motor rotation direction: Identifies motor rotation direction, whether contact or non-contact (wireless)
LED indicators: LED indicators display phase direction (clockwise/counterclockwise) and indicate live phases
Safety rating: CAT IV-600V safety rating ensures reliable operation

Applications

Determine correct wiring sequence for 3-phase systems
Determine correct rotation for 3-phase motors to prevent equipment damage

Triplett PR650 Specifications

Phase Voltage Range	70 to 1000 V AC
Bandwidth	45 to 66 Hz
Motor Rotation	Yes (contact and wireless)
Power	9 V battery
Safety Category	CAT IV 600 V
Dimensions	5.3 x 3 x 1.2" (135 x 75 x 31 mm)
Weight	13.4 oz (380 g)

What's included with the Triplett PR650

Tester
Test leads with large color-coded alligator clips
Carrying Case
9 V Battery
One-Year Warranty

Description ➕➖

Triplett PR650 Offers

Features

Phase wiring sequence: Determines correct phase wiring sequence (L1, L2, L3) for 3-phase system installations
Motor rotation direction: Identifies motor rotation direction, whether contact or non-contact (wireless)
LED indicators: LED indicators display phase direction (clockwise/counterclockwise) and indicate live phases
Safety rating: CAT IV-600V safety rating ensures reliable operation

Applications

Determine correct wiring sequence for 3-phase systems
Determine correct rotation for 3-phase motors to prevent equipment damage

Specifications ➕➖

Triplett PR650 Specifications

Phase Voltage Range	70 to 1000 V AC
Bandwidth	45 to 66 Hz
Motor Rotation	Yes (contact and wireless)
Power	9 V battery
Safety Category	CAT IV 600 V
Dimensions	5.3 x 3 x 1.2" (135 x 75 x 31 mm)
Weight	13.4 oz (380 g)

Included ➕➖

What's included with the Triplett PR650

Tester
Test leads with large color-coded alligator clips
Carrying Case
9 V Battery
One-Year Warranty
