TPI 9070 Smart Vibration Analyzer, 0.2Hz to 1kHz (ISO)

Model: 9070 | UPC: 637623090707

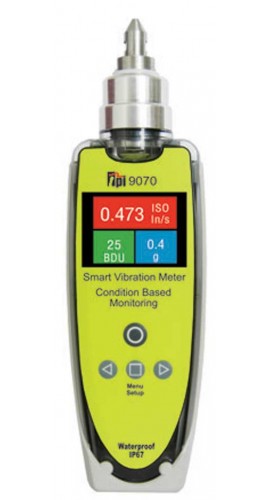

TPI 9070 Smart Vibration Analyzer, 0.2Hz to 1kHz (ISO)-

Downloads: datasheet manual

More TPI Products

Ask an Expert

TPI 9070 Smart Vibration Analyzer, 0.2Hz to 1kHz (ISO)

Model: 9070 | UPC: 637623090707

Built for machine and bearing condition monitoring, this handheld vibration analyzer reads overall vibration from 0.2 Hz to 1 kHz (ISO) with color-coded ISO and bearing-damage (BDU) alarm levels. Built-in 1X, 2X, and 3X band filters flag unbalance, misalignment, and looseness, and an 800-line spectrum with zoom isolates complex faults.

Built for machine and bearing condition monitoring, this handheld vibration analyzer reads overall vibration from 0.2 Hz to 1 kHz (ISO) with color-coded ISO and bearing-damage (BDU) alarm levels. Built-in 1X, 2X, and 3X band filters flag unbalance, misalignment, and looseness, and an 800-line spectrum with zoom isolates complex faults.

Sale Price $584.96 USD
Regular Price $649.95 USD
Availability 1 to 2 Weeks
Quantity

TPI 9070 Offers

This TPI 9070 Smart Vibration Analyzer makes it easy to monitor the overall condition of machines and bearings by measuring vibrations during operation. By analyzing frequencies from 0.2 Hz to 1 kHz (ISO) and 2 Hz to 3 kHz, the meter can diagnose faults, such as unbalance, misalignment and looseness.

Features

  • Designed to measure machine and bearing conditions through vibration monitoring
  • Helps diagnose faults, like unbalance, misalignment and looseness
  • Color-coded alarm levels for ISO and Bearing Damage (BDU)
  • Features a full-color OLED display with up to 800 lines FFT
  • Equipped with a built-in accelerometer with stinger
  • IP67 case is ruggedized to help ensure safe transport of the meter
  • CE- and RoHs-compliant and UL-listed design

Applications

  • Commercial and Industrial HVAC/R Monitoring, Food Processing, Manufacturing and Packaging Monitoring, Pulp and Paper, Power Plants and Utilities Monitoring, Mining and Petrochemical Monitoring, Automotive Monitoring

TPI 9070 Specifications

Frequency Range 0.2 Hz to 1 kHz (ISO), 2 Hz to 3 kHz
Frequency Resolution 100/200/400/800 lines
Water Resistance IP67 waterproof
Display Amplitude Units g (acceleration), in/s (velocity), BDU (bearing damage)
Displayed Frequency Units Hz, CPM, RPM
Input Range ±50 g
Dynamic Range 72 dB
Auto Setup of VA Bands Yes
Accelerometer Connection Internal sensor
RoHS Compliant Yes
UL Listed Yes
CE Compliant Yes
Power Supply 2 AA batteries
Product Width 2.36" (5.99 cm)
Product Height 7.95" (20.19 cm)
Product Weight 9.8 oz (277.83 g)
Manufacturer Warranty 3-year limited
Click here for complete specifications on the TPI 9070

What's included with the TPI 9070

  • TPI 9070 Smart Vibration Analyzer, 0.2Hz to 1kHz (ISO)

TPI 9070 Smart Vibration Meter: Overview


Easily identify imbalances, misalignments, or looseness conditions with this smart vibration meter. This video will go over the key features of the instrument and give a step-by-step tutorial on how to perform a test on a motor.
datasheet for the TPI 9070 Smart Vibration Analyzer, 0.2Hz to 1kHz (ISO) manual for the TPI 9070 Smart Vibration Analyzer, 0.2Hz to 1kHz (ISO)

TPI 9070 Offers

This TPI 9070 Smart Vibration Analyzer makes it easy to monitor the overall condition of machines and bearings by measuring vibrations during operation. By analyzing frequencies from 0.2 Hz to 1 kHz (ISO) and 2 Hz to 3 kHz, the meter can diagnose faults, such as unbalance, misalignment and looseness.

Features

  • Designed to measure machine and bearing conditions through vibration monitoring
  • Helps diagnose faults, like unbalance, misalignment and looseness
  • Color-coded alarm levels for ISO and Bearing Damage (BDU)
  • Features a full-color OLED display with up to 800 lines FFT
  • Equipped with a built-in accelerometer with stinger
  • IP67 case is ruggedized to help ensure safe transport of the meter
  • CE- and RoHs-compliant and UL-listed design

Applications

  • Commercial and Industrial HVAC/R Monitoring, Food Processing, Manufacturing and Packaging Monitoring, Pulp and Paper, Power Plants and Utilities Monitoring, Mining and Petrochemical Monitoring, Automotive Monitoring
Show More...

TPI 9070 Specifications

Frequency Range 0.2 Hz to 1 kHz (ISO), 2 Hz to 3 kHz
Frequency Resolution 100/200/400/800 lines
Water Resistance IP67 waterproof
Display Amplitude Units g (acceleration), in/s (velocity), BDU (bearing damage)
Displayed Frequency Units Hz, CPM, RPM
Input Range ±50 g
Dynamic Range 72 dB
Auto Setup of VA Bands Yes
Accelerometer Connection Internal sensor
RoHS Compliant Yes
UL Listed Yes
CE Compliant Yes
Power Supply 2 AA batteries
Product Width 2.36" (5.99 cm)
Product Height 7.95" (20.19 cm)
Product Weight 9.8 oz (277.83 g)
Manufacturer Warranty 3-year limited
Click here for complete specifications on the TPI 9070

What's included with the TPI 9070

  • TPI 9070 Smart Vibration Analyzer, 0.2Hz to 1kHz (ISO)

TPI 9070 Smart Vibration Meter: Overview


Easily identify imbalances, misalignments, or looseness conditions with this smart vibration meter. This video will go over the key features of the instrument and give a step-by-step tutorial on how to perform a test on a motor.
datasheet for the TPI 9070 Smart Vibration Analyzer, 0.2Hz to 1kHz (ISO) manual for the TPI 9070 Smart Vibration Analyzer, 0.2Hz to 1kHz (ISO)
