with this fault locator and receiver, you can easily confirm and find a variety of ground faults. The frame is made from powder-coat aluminum.
with this fault locator and receiver, you can easily confirm and find a variety of ground faults. The frame is made from powder-coat aluminum.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:

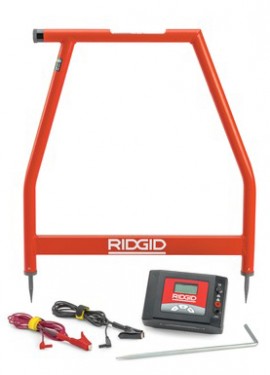

Set up the RIDGID 56613 A-Frame Fault Locator and Receiver to pinpoint insulation faults. It locates a ground fault, severed conductor, damaged insulation or other fault so that you can make the necessary repairs. The device is lightweight and features a digital display with weatherproof buttons.
Features
| Direct Fault Finding | 797 Hz - dFF displayed |
| Path Locating | 128 Hz, 1 kHz, 8 kHz, 33 kHz, 93 kHz |
| Direct Connect | 128 Hz, 1 kHz, 8 kHz, 33 kHz, 93 kHz |
| Inductive Clamp | 8 kHz, 33 kHz, 93 kHz |
| Broadcast Inductive | 33 kHz, 93 kHz |
| Load Range | 5 to 2 MΩ |
| Output Power | Up to 3 W (low, medium and high settings) |
| Output Voltage | 5 to 600 V |
| Power Supply | 6 AA batteries (receiver), 8 C-cell batteries (transmitter) |
| Fault Finding Depth | Up to 20' (6.1 m) depending on conditions |
| Fault Finding Length | Up to 3 miles (4.8 km) depending on conditions |
| Display | LCD |
| Product Length | 30.3" (77 cm) receiver; 8.5" (21.6 cm) transmitter |
| Product Width | 30.4" (77 cm) receiver; 5.8" (14.7 cm) transmitter |
| Product Height | 1.5" (3.81 cm) receiver; 2.5" (6.35 cm) transmitter |
| Product Weight | 5.2 lbs (2.3 kg) |
| Manufacturer Warranty | Lifetime |
