This loop-powered meter boasts explosion-proof protection. It's strong enough to endure hazardous applications.
This loop-powered meter boasts explosion-proof protection. It's strong enough to endure hazardous applications.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Loop Calibration Modules category for similar products.
Or let's do a search and help you find what you need:

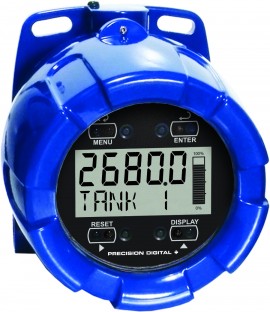

For ultimate field endurance, choose the Precision Digital PD6800-0L1 ProtEX-Pro Explosion-Proof Loop-Powered Meter with Level Bar Graph and Backlight. This meter is crafted for extreme durability in even the most hazardous environments. Plus, it can be mounted to either a wall or a pipe depending on the needs of your setup. The display comes with a backlight for viewing in direct sunlight and features SafeTouch® button programming.
Features
| Protection Rating | NEMA 4X/IP68 |
| Input | 4 to 20 mA current, 1 digital input (for external alarm reset only) |
| Output | 1 open collector |
| Display | 5 and 7-digit dual-line LCD with standard backlighting (decimal and bar graph) |
| Power | Loop-powered |
| Transmitter Power | None |
| Serial Communication | None |
| Operating Temperature | -40 to 167°F (-40 to 75°C) |
| Material | Die-cast aluminum with glass window and corrosion-resistant epoxy coating |
| Noise Filter | Low, medium, high, off |
| Approval | CE, CSA (XP), FM (XP), ATEX (FP), IECEx (FP) |
| Product Length | 4.86" (124 mm) |
| Product Width | 5.65" (144 mm) |
| Product Height | 5.25" (133 mm) |
| Product Weight | 5 lbs (2.27 kg) |
| Manufacturer Warranty | 3 years |
| Protection Rating | NEMA 4X/IP68 |
| Input | 4 to 20 mA current, 1 digital input (for external alarm reset only) |
| Output | 1 open collector |
| Display | 5 and 7-digit dual-line LCD with standard backlighting (decimal and bar graph) |
| Power | Loop-powered |
| Transmitter Power | None |
| Serial Communication | None |
| Operating Temperature | -40 to 167°F (-40 to 75°C) |
| Material | Die-cast aluminum with glass window and corrosion-resistant epoxy coating |
| Noise Filter | Low, medium, high, off |
| Approval | CE, CSA (XP), FM (XP), ATEX (FP), IECEx (FP) |
| Product Length | 4.86" (124 mm) |
| Product Width | 5.65" (144 mm) |
| Product Height | 5.25" (133 mm) |
| Product Weight | 5 lbs (2.27 kg) |
| Manufacturer Warranty | 3 years |
