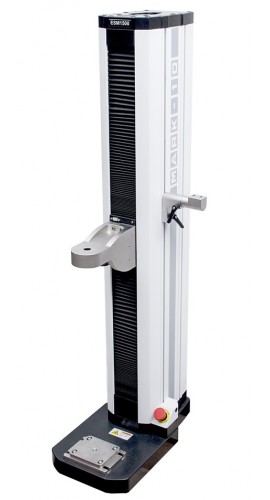

Highly configurable for tension and compression measurement applications, this test stand comes with a load cell mount and a capacity of 1500 lbF (6.7 kN). Work with intuitive menu navigation and many test methods through configurable parameters such as speed, number of cycles, etc.
Highly configurable for tension and compression measurement applications, this test stand comes with a load cell mount and a capacity of 1500 lbF (6.7 kN). Work with intuitive menu navigation and many test methods through configurable parameters such as speed, number of cycles, etc.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Test Stands category for similar products.
Or let's do a search and help you find what you need:
Work with confidence with this motorized force test stand that is suitable for break testing, cycling, limit testing to a load or distance, load-holding, elongation testing, tensile testing, compression testing, and more. Conveniently saves up to 50 profiles with password protection and has a unique modular controller function platform. Suitable for crowded workbenches, this test stand performs smooth and quiet operations without speed variation under load.
Features
Applications
| Maximum Force | 1500 lbF (6.7 kN) |
| Available Speed Range | 0.001 to 90" per minute (0.02 to 2300 mm/min) |
| Maximum Clearance | 37" (940 mm) |
| Throat Depth | 6.7" (170 mm) |
| Load Capacity | <60" (1525 mm)/min: 1500 lbF (6.7 kN) >60" (1525 mm)/min: 1000 lbF (4.5 kN) |
| Travel | Maximum: 32" (813 mm) Accuracy: ±0.002" per 10" (±0.05 mm per 250 mm) Resolution: ±0.001" (0.03 mm) Display position retention: Most recent position is recalled when powered on |
| Standard Speed Range | 0.5 to 24" per minute (10 to 600 mm/min) |
| Speed | Setting accuracy: ±0.2% Variation with load: ±0% (stepper motor driven) |
| Limit Switch Repeatability | ±0.001" (0.03 mm) |
| Power | Universal input 80 to 240 VAC, 50/60 Hz, 450 W |
| Dimensions | 18.80 x 20 x 51.35" (477.6 x 508 x 1304.3 mm) |
| Weight | 198 lbs (113 kg) |
Click on a category to view a selection of compatible accessories with the Mark-10 ESM1500LC Motorized Tension / Compression Test Stand with load cell mount, 1500 lbF.
| Maximum Force | 1500 lbF (6.7 kN) |
| Available Speed Range | 0.001 to 90" per minute (0.02 to 2300 mm/min) |
| Maximum Clearance | 37" (940 mm) |
| Throat Depth | 6.7" (170 mm) |
| Load Capacity | <60" (1525 mm)/min: 1500 lbF (6.7 kN) >60" (1525 mm)/min: 1000 lbF (4.5 kN) |
| Travel | Maximum: 32" (813 mm) Accuracy: ±0.002" per 10" (±0.05 mm per 250 mm) Resolution: ±0.001" (0.03 mm) Display position retention: Most recent position is recalled when powered on |
| Standard Speed Range | 0.5 to 24" per minute (10 to 600 mm/min) |
| Speed | Setting accuracy: ±0.2% Variation with load: ±0% (stepper motor driven) |
| Limit Switch Repeatability | ±0.001" (0.03 mm) |
| Power | Universal input 80 to 240 VAC, 50/60 Hz, 450 W |
| Dimensions | 18.80 x 20 x 51.35" (477.6 x 508 x 1304.3 mm) |
| Weight | 198 lbs (113 kg) |
Click on a category to view a selection of compatible accessories with the Mark-10 ESM1500LC Motorized Tension / Compression Test Stand with load cell mount, 1500 lbF.
