Operate up to 284°F (140°C) with this high-temperature data logger that features a 24" (609.6 mm) flexible probe and a 5" (127 mm) piercing tip. In addition, this logger records date and time-stamped readings and has non-volatile solid-state memory to retain data.
Operate up to 284°F (140°C) with this high-temperature data logger that features a 24" (609.6 mm) flexible probe and a 5" (127 mm) piercing tip. In addition, this logger records date and time-stamped readings and has non-volatile solid-state memory to retain data.

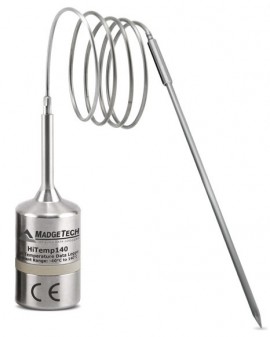

With an extended temperature range of -328 to 662°F (-200 to 350°C), this Madgetech HiTemp140-PT-5 Temperature Data Logger with 24" (60.96 cm) Bendable Probe is ideal for your temperature measurement needs. The flexible probe can be spiraled, bent or angled to take measurements in hard-to-reach spots. The probe is made of stainless steel for rugged durability.
Features
| Temperature Sensor | 100 Ω platinum RTD |
| Temperature Resolution | 0.02°F (0.01°C) |
| Temperature Calibrated Accuracy | 68 to 284°F (20 to 140°C): ±0.18°F (±0.1°C) -4 to 67.98°F (-20 to 19.99°C): ±0.54°F (±0.3°C) -40 to -4.02°F (-40 to -20.01°C): ±0.72°F (±0.4°C) |
| Probe Temperature Range | -328 to 662°F (-200 to 350°C) |
| Memory | 32,700 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 125,000 |
| Material | Stainless steel |
| IP Rating | IP68 |
| Submersible | Yes |
| Required Interface Package | IFC400 |
| CE Compliant | Yes |
| Product Diameter | 0.97" (25 mm) body 0.125" (3.2 mm) probe 0.062" (1.6 mm) bendable portion |
| Product Length | 1.75" (45 mm) body 5" (12.7 cm) probe 22" (55.8 cm) bendable portion |
| Weight | 0.5 lbs (226.8 g) |
Click on a category to view a selection of compatible accessories with the MadgeTech HiTemp140-PT High Temperature Data Logger with a 24" flexible probe and 5" piercing tip.
