This PQA has a great internal memory in order to save recording results for lots of parameters. With its user-friendly interface and touch screen LCD display you can select any kind of feature and a contextual help is available.
This PQA has a great internal memory in order to save recording results for lots of parameters. With its user-friendly interface and touch screen LCD display you can select any kind of feature and a contextual help is available.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.

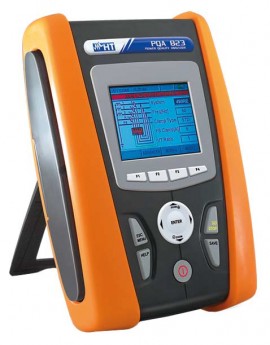

Analyze a large amount of data with the PQA823 with its innovative design and graphic touch screen wide display. Contextual help is available in any screen due to its user-friendly icon selection. Visualize your data in both numeric and graphical modes with large waveforms and histograms.
Features
Applications
Ideal for the following applications: Troubleshoot electrical problems and anomalies, Plant Maintenance and Electrical Services.
| Display | 320 x 240 graphical color TFT |
| Internal Memory | 15 Mbytes |
| TRMS AC/DC Phase - Neutral/Phase - Ground Voltage, Single/Three Phase Systems | |
|---|---|
| Range | 2 to 600 V |
| Resolution | 0.1 V |
| Accuracy | ±(0.5%rdg + 2 dgt) |
| Input impedance | 10 MΩ |
| TRMS AC/DC Phase - Phase Voltage, Three Phase Systems | |
| Range | 2 to 1000 V |
| Resolution | 0.1 V |
| Accuracy | ±(0.5% rdg + 2 dgt) |
| Input Impedance | 10 MΩ |
| Phase - Neutral Voltage Anomalies, Single/Three Phase Systems | |
| Range | 2 to 600 V |
| Resolution | 0.2 V |
| Accuracy | ±(1.0% rdg + 2 dgt) |
| Time Resolution | 10 ms |
| Phase - Phase Voltage Anomalies, Three Phase Systems | |
| Range | 2 to 1000 V |
| Resolution | 0.2 V |
| Accuracy | ±(1.0% rdg + 2 dgt) |
| Time Resolution | 10 ms |
Click on a category to view a selection of compatible accessories with the HT Instruments PQA823 CAT IV Power Quality Analyzer and Energy Logger 4 CTs, HTFLEX33.
| Display | 320 x 240 graphical color TFT |
| Internal Memory | 15 Mbytes |
| TRMS AC/DC Phase - Neutral/Phase - Ground Voltage, Single/Three Phase Systems | |
|---|---|
| Range | 2 to 600 V |
| Resolution | 0.1 V |
| Accuracy | ±(0.5%rdg + 2 dgt) |
| Input impedance | 10 MΩ |
| TRMS AC/DC Phase - Phase Voltage, Three Phase Systems | |
| Range | 2 to 1000 V |
| Resolution | 0.1 V |
| Accuracy | ±(0.5% rdg + 2 dgt) |
| Input Impedance | 10 MΩ |
| Phase - Neutral Voltage Anomalies, Single/Three Phase Systems | |
| Range | 2 to 600 V |
| Resolution | 0.2 V |
| Accuracy | ±(1.0% rdg + 2 dgt) |
| Time Resolution | 10 ms |
| Phase - Phase Voltage Anomalies, Three Phase Systems | |
| Range | 2 to 1000 V |
| Resolution | 0.2 V |
| Accuracy | ±(1.0% rdg + 2 dgt) |
| Time Resolution | 10 ms |
Click on a category to view a selection of compatible accessories with the HT Instruments PQA823 CAT IV Power Quality Analyzer and Energy Logger 4 CTs, HTFLEX33.
