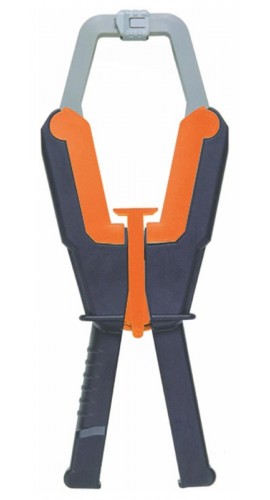

Rigid clamp for the HT Instruments PQAs. Measures 200-2000A AC with a 70mm diameter.
Rigid clamp for the HT Instruments PQAs. Measures 200-2000A AC with a 70mm diameter.
Features
| Accuracy: 200 A FS | |
| Output Signal | 1 A: ±(1%rdg + 1mV) 40 A: ±(1%rdg) 200 A: ±(0.5%rdg) |
| Phase Difference | 1 A: 1° 40 A: 40 minutes 200 A: 30 minutes |
| Accuracy: 2000 A FS | |
| Output Signal | 10 A: ±(1%rdg + 0.5mV) 400 A: ±(1%rdg) 2000 A: ±(0.5%rdg) |
| Phase Difference | 10 A: 1° 400 A: 40 minutes 2000 A: 20 minutes |
| General Specifications | |
| Measuring Range | 0.1 to 200 A, 1 to 2000 A |
| Output Signal | 1 V |
| Ratio | 5 to 0.5 mV/A |
| Frequency Range | 40 Hz to 5 kHz |
| Dielectric Strength | 5.5 KV 50 Hz 1 min |
| Temperature Range | 14 to 122°F (-10 to 50°C) |
| Dimensions | 133 x 336 x 52 mm |
| Weight | 1.7 kg |
| Accuracy: 200 A FS | |
| Output Signal | 1 A: ±(1%rdg + 1mV) 40 A: ±(1%rdg) 200 A: ±(0.5%rdg) |
| Phase Difference | 1 A: 1° 40 A: 40 minutes 200 A: 30 minutes |
| Accuracy: 2000 A FS | |
| Output Signal | 10 A: ±(1%rdg + 0.5mV) 400 A: ±(1%rdg) 2000 A: ±(0.5%rdg) |
| Phase Difference | 10 A: 1° 400 A: 40 minutes 2000 A: 20 minutes |
| General Specifications | |
| Measuring Range | 0.1 to 200 A, 1 to 2000 A |
| Output Signal | 1 V |
| Ratio | 5 to 0.5 mV/A |
| Frequency Range | 40 Hz to 5 kHz |
| Dielectric Strength | 5.5 KV 50 Hz 1 min |
| Temperature Range | 14 to 122°F (-10 to 50°C) |
| Dimensions | 133 x 336 x 52 mm |
| Weight | 1.7 kg |
