Multifunction 1000A AC/DC Clamp combining Digital Multimeter, Non-Contact Clamp Meter and Spot IR Thermometer into a compact and rugged multi-purpose tool.
Multifunction 1000A AC/DC Clamp combining Digital Multimeter, Non-Contact Clamp Meter and Spot IR Thermometer into a compact and rugged multi-purpose tool.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
FLIR CM78 Offers

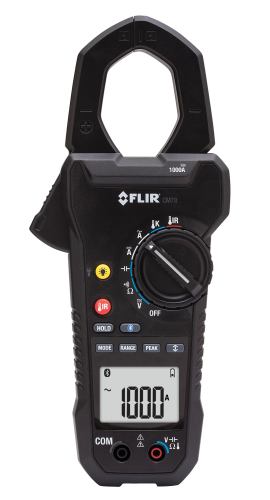

The FLIR CM78 is a True RMS Industrial Grade 1000A Clamp Meter for the electrician who needs a safe, capable combination tool.
The FLIR CM78 is a True RMS Industrial Grade 1000A Clamp Meter for the electrician who needs a safe, capable combination tool.
Features
Features
| Specifications | ||
| Features | Max Range | Basic Accuracy |
| AC/DC Voltage | 1000A | ±2.5% |
| AC/DC Current | 1000V | ±1.5% |
| Resistance | 40.00M Ω | ±1.5% |
| Capacitance | 4.000 mF | ±3% |
| Frequency | 4000 Hz | ±1.5% |
| Temperature (IR) | -20 to 518°F (-20 to 270°C) | ±2% |
| IR Distance to Target Ratio | 8 Inches Away: 1 inch Spot size | |
| Type K Temperature (Optional Probe) | -4 to 1400°F | ±3% |
Click on a category to view a selection of compatible accessories with the FLIR CM78 AC/DC Clamp Meter with IR Thermometer, 1000A.
| Specifications | ||
| Features | Max Range | Basic Accuracy |
| AC/DC Voltage | 1000A | ±2.5% |
| AC/DC Current | 1000V | ±1.5% |
| Resistance | 40.00M Ω | ±1.5% |
| Capacitance | 4.000 mF | ±3% |
| Frequency | 4000 Hz | ±1.5% |
| Temperature (IR) | -20 to 518°F (-20 to 270°C) | ±2% |
| IR Distance to Target Ratio | 8 Inches Away: 1 inch Spot size | |
| Type K Temperature (Optional Probe) | -4 to 1400°F | ±3% |
Click on a category to view a selection of compatible accessories with the FLIR CM78 AC/DC Clamp Meter with IR Thermometer, 1000A.
