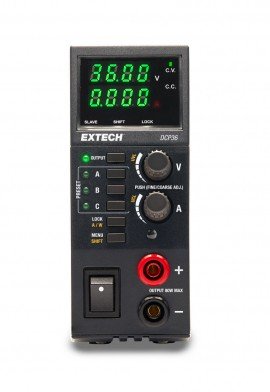

Extech DCP36 Switching Mode DC Power Supply, 80 W

Model: DCP36 | UPC: 793950383360

Downloads: datasheet

Extech DCP36 Switching Mode DC Power Supply, 80 W

Model: DCP36 | UPC: 793950383360

A compact and lightweight power supply that has 80 W constant power topology, auto ranging voltage and current output. It features 4-Digit LED displays, 3-programmable presets, front/rear output terminals, and remote sensing for accurate applied voltage at load point.

Your Price	$419.00 USD
Availability	8 to 9 Weeks
Quantity	Quantity

Extech DCP36 Offers

Features

80 W Constant power topology with 0.5 to 36 V and 0 to 5 A auto-range output
Dual 4-digit LED displays with 10 mV and 10 mA resolution
Lower display indicates Current or Watts
Constant voltage or current
3 user programmable presets for frequently used settings
Upper voltage and current limit setting to protect UUT (Unit Under Test)
Output on/off switch with power up output On or Off status setting
Remote sensing for accurate applied voltage at the load point
Front/Rear output terminals
Lock/Unlock front panel
Parallel connection to other units for Master/Slave control
Compact slim tower housing is ideal for tight work bench
Lightweight for easy portability

Extech DCP36 Specifications

Voltage/Current	0.5 to 36 V/0 to 5 A; Auto-ranging with 80 W maximum output power (E x I = ≤80 W)
Accuracy	±(0.5% + 5 counts)
Ripple & Noise	≤35 mVpp
Line Regulation	≤4 mV/≤10 mA
Load Regulation	≤30 mV/≤10 mA
Dimensions	13 x 5 x 2" (330 x 127 x 53.5 mm)
Weight	4.2 lbs (1.9 kg)

Click here for complete specifications on the Extech DCP36

What's included with the Extech DCP36

DC Power Supply
RJ11 Cable
Alligator Clip Test Leads
RJ11 Terminator Plug
Standard North American (Type B) 3-Prong Plug AC Power Cord

datasheet for the Extech DCP36 Switching Mode DC Power Supply, 80 W
