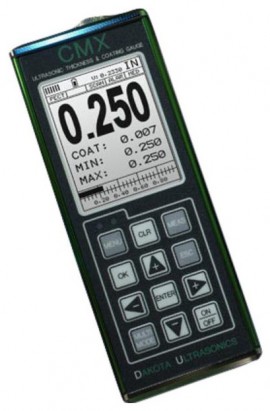

Dakota CMX Coating & Wall Thickness Gauge, Standard

Model: CMX | Order No: Z-170-0001

Dakota CMX Coating & Wall Thickness Gauge, Standard-

Downloads: datasheet manual

More Dakota Ultrasonics Products

Ask an Expert

Dakota CMX Coating & Wall Thickness Gauge, Standard

Model: CMX | Order No: Z-170-0001

Offers all the features of MX & MMX gauges with much more added features and advantages like auto probe zero, auto probe recognition, auto temperature compensation, and a stand alone coating only mode. This multimode thickness gauge measures material and coating thickness simultaneously, while still detecting pits & flaws in a single mode (PECT).

Offers all the features of MX & MMX gauges with much more added features and advantages like auto probe zero, auto probe recognition, auto temperature compensation, and a stand alone coating only mode. This multimode thickness gauge measures material and coating thickness simultaneously, while still detecting pits & flaws in a single mode (PECT).

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

Dakota Ultrasonics CMX Coating and Wall Thickness Gauge, standard-

Dakota Ultrasonics CMX Coating and Wall Thickness Gauge, standard

Model: CMX | Order No: Z-170-0003

The gauge offers the same features as the MX and MMX gauges as well as additional advantages, such as auto probe zero, auto probe recognition, auto temperature compensation, and a stand-alone coating only mode. It measures material and coating thickness simultaneously, while still detecting pits and flaws in a single mode (PECT).

Learn More

Recommended Accessories

Dakota T-101-2900 5.0 MHz Dual Element Transducer, 3/16", Side Entry-

Dakota T-101-2900 5.0 MHz Dual Element Transducer, 3/16", Side Entry

T-101-2900

Dakota T-101-3900 7.5 MHz Dual Element Transducer, 3/16", Side Entry-

Dakota T-101-3900 7.5 MHz Dual Element Transducer, 3/16", Side Entry

T-101-3900

Dakota T-102-2900 5.0 MHz Dual Element Transducer, 1/4", Side Entry-

Dakota T-102-2900 5.0 MHz Dual Element Transducer, 1/4", Side Entry

T-102-2900

Dakota T-104-2900 5.0 MHz Dual Element Transducer, 1/2", Side Entry-

Dakota T-104-2900 5.0 MHz Dual Element Transducer, 1/2", Side Entry

T-104-2900

Dakota T-104-9900 3.5 MHz Dual Element Transducer, 1/2", Side entry-

Dakota T-104-9900 3.5 MHz Dual Element Transducer, 1/2", Side entry

T-104-9900

Dakota T-212-2001 5.0 MHz Dual Element Transducer, 1/4", Microdot Connector-

Dakota T-212-2001 5.0 MHz Dual Element Transducer, 1/4", Microdot Connector

T-212-2001

Dakota Ultrasonics CMX Offers

The CMX has all features of the MX & MMX gauges with a ton of advanced features. Measure material and coating thickness simultaneously, while still detecting pits & flaws in a single mode (PECT). Auto probe zero, auto probe recognition, auto temperature compensation are also included. Selectable Large Digits and B-Scan display options, up to 64 custom user definable setups, selectable transducer table for precision linearity, and material and coating calibration options are also available.

Features

  • Measurement modes: Pulse-Echo, Pulse-Echo with Coating, Pulse-Echo with Temperature Compensation, Echo-Echo, Echo-Echo verify, & Coating Only
  • Automatic: probe zero, probe recognition, and temperature compensation
  • Stores up to 64 custom setups for specific applications
  • High Speed Scan of up to 50 readings per second
  • Audible/visual alarm with hi and lo limit settings
  • Built-in differential mode for QC inspections
  • Time based B-Scan feature for cross section material scans
  • Windows PC software included
  • 2 year limited warranty

Dakota Ultrasonics CMX Specifications

Operating Temperature -14 to 140°F (-10 to 60°C)
Case Materials Extruded Aluminum Body
Nickel Plated Aluminum End Caps (Gasket Sealed)
Data Output Bi-Directional RS232 Serial Port
Windows® PC Interface Software
Display 1/8" VGA Grayscale Display (240 x 160 Pixels)
Viewable Area: 2.4 x 1.8" (62 x 45.7 mm)
Power Source 3 x 1.5V Alkaline Batteries or 1.2V NiCad AA Cells
Resolution ±0.001" (0.01 mm)
Velocity Range 0.0492 to 0.5510 in/µs (1250 to 13,995 m/s)
Units English & Metric
Dimensions 2.5 x 6.5 x 1.24" (63.5 x 165 x 31.5 mm)
Weight 13.5 oz (with Batteries)
Click here for complete specifications on the Dakota Ultrasonics CMX

What's included with the Dakota Ultrasonics CMX

  • Thickness Gauge
  • NIST-Traceable Calibration Certificate
  • Probe
  • 4 oz Bottle of Couplant
  • 2 x AA Batteries
  • RS-232 Cable and Software
  • Carrying Case
  • Operation Manual
datasheet for the Dakota CMX Coating & Wall Thickness Gauge, Standard manual for the Dakota CMX Coating & Wall Thickness Gauge, Standard
