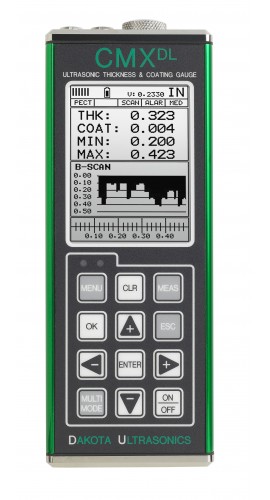

The gauge offers the same features as the CMX along with impressive storage capacity, using multiple file structures. It features a selection between two file formats: sequential, with auto-identifiers, or the standard alpha-numeric grid format.
The gauge offers the same features as the CMX along with impressive storage capacity, using multiple file structures. It features a selection between two file formats: sequential, with auto-identifiers, or the standard alpha-numeric grid format.
The material and coating thickness gauge has high speed scan of up to 250 readings per second.
Features
| Large Digits: | Standard thickness view; Digit Height: 0.700 in (17.78 mm) |
| B-Scan: | Time based cross section view. Display speed of 15 secs per screen |
| Scan Bar: | 6 readings per second. Viewable in B-Scan and Large Digit views |
| Operating Temperature: | -14 to 140°F (-10 to 60°C) |
| Size (W x H x D): | 2.5 x 6.5 x 1.24" inches (63.5 x 165 x 31.5 mm) |
| Weight: | 13.5 ounces (with batteries) |
| Keyboard: | Membrane switch with twelve tactile keys |
| Case: | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed) |
| Display: | 1/8" VGA grayscale display (240 x 160 pixels); Viewable area 2.4 x 1.8" (62 x 45.7 mm). EL backlit (on/off/auto) |
| Resolution: | +/- .001 inches (0.01 mm) |
| Velocity Range: | .0122 to .7300 in./ms (309.88 to 18542 meters/sec) |
| Line Power: | USB-C to PC or power outlet |
| Warranty | 2 years limited |
| Large Digits: | Standard thickness view; Digit Height: 0.700 in (17.78 mm) |
| B-Scan: | Time based cross section view. Display speed of 15 secs per screen |
| Scan Bar: | 6 readings per second. Viewable in B-Scan and Large Digit views |
| Operating Temperature: | -14 to 140°F (-10 to 60°C) |
| Size (W x H x D): | 2.5 x 6.5 x 1.24" inches (63.5 x 165 x 31.5 mm) |
| Weight: | 13.5 ounces (with batteries) |
| Keyboard: | Membrane switch with twelve tactile keys |
| Case: | Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed) |
| Display: | 1/8" VGA grayscale display (240 x 160 pixels); Viewable area 2.4 x 1.8" (62 x 45.7 mm). EL backlit (on/off/auto) |
| Resolution: | +/- .001 inches (0.01 mm) |
| Velocity Range: | .0122 to .7300 in./ms (309.88 to 18542 meters/sec) |
| Line Power: | USB-C to PC or power outlet |
| Warranty | 2 years limited |
