Converts ultrasonic sound into a signal that can be used to pinpoint the exact location of the equipment failure and the filter function can filter out up three main noise frequencies. View the strength of leaks clearly on the LCD bar graph and identify the source from the converted audible sound emitted via the headphones.
Converts ultrasonic sound into a signal that can be used to pinpoint the exact location of the equipment failure and the filter function can filter out up three main noise frequencies. View the strength of leaks clearly on the LCD bar graph and identify the source from the converted audible sound emitted via the headphones.

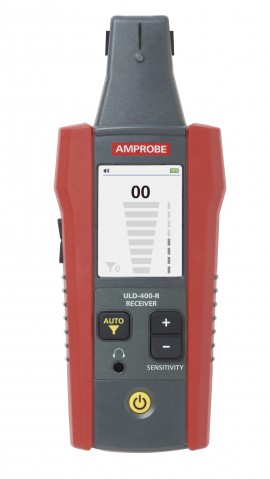

The ultimate ultrasonic diagnostic tool
When equipment begins to fail due to an air/gas leak, vibration or electrical discharge, the leakage point emits an ultrasonic sound wave that is above the natural range of human hearing. The leak detector converts ultrasonic sound into a signal that can be used to pinpoint the exact location of the equipment failure and allows the user to see the strength of the leak clearly on the large LCD bar graph and identify the source of the leak by listening to the converted audible sound emitted via the headphones.
In extremely noisy environments where there is strong ultrasonic noise generated by running machinery or equipment, the receiver's filter function can filter out up three main noise frequencies which would otherwise hide the noise of the fail.
Features
| Frequency Range | 20 to 90 kHz |
| Filter | ±5 kHz of main noise frequency, up to three filter |
| Display | Size: LCD 2.5" (6.35 cm) Dimensions: 1.45 x 1.93" (36.72 x 48.96 mm) Resolution: 240 (RGB) x 320 pixels Type: TFT-LCD (262 K) Color: True, 16 bit/color |
| APO Function | 60 minutes when in idle |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Operating Humidity | <80% RH</td> |
| Pollution Degree | 2 |
| Protection | IP40 |
| Certification | CE, ACMA, IC |
| Power Supply | Type: 4 x 1.5 V AA (LR6) alkaline batteries Consumption (typical): 75 mA Life: 105 hours (alkaline) |
| Dimensions | 7.547 x 2.984 x 1.791" (183 x 75 x 43 mm) |
| Weight | Approximately 0.518 lb (0.235 kg) |
| Frequency Range | 20 to 90 kHz |
| Filter | ±5 kHz of main noise frequency, up to three filter |
| Display | Size: LCD 2.5" (6.35 cm) Dimensions: 1.45 x 1.93" (36.72 x 48.96 mm) Resolution: 240 (RGB) x 320 pixels Type: TFT-LCD (262 K) Color: True, 16 bit/color |
| APO Function | 60 minutes when in idle |
| Operating Temperature | -4 to 122°F (-20 to 50°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Operating Humidity | <80% RH</td> |
| Pollution Degree | 2 |
| Protection | IP40 |
| Certification | CE, ACMA, IC |
| Power Supply | Type: 4 x 1.5 V AA (LR6) alkaline batteries Consumption (typical): 75 mA Life: 105 hours (alkaline) |
| Dimensions | 7.547 x 2.984 x 1.791" (183 x 75 x 43 mm) |
| Weight | Approximately 0.518 lb (0.235 kg) |
