Two independent current probe terminals let this dual-channel AC current data logger record both circuits at once, comparing feeders, phases, or upstream and downstream loads in one session. Sensor auto-detection spans the full PEL and PowerPad probe family, from 10 mA control circuits up to 25,000 A AC main feeders.
Two independent current probe terminals let this dual-channel AC current data logger record both circuits at once, comparing feeders, phases, or upstream and downstream loads in one session. Sensor auto-detection spans the full PEL and PowerPad probe family, from 10 mA control circuits up to 25,000 A AC main feeders.

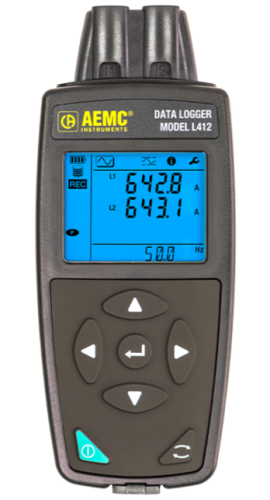

Part of the AEMC L400 Series, the Model L412 extends the family's 1-second logging to two independent channels, so a single instrument can document two circuits at once. It accepts a wide range of AEMC PEL and PowerPad current sensors, letting one logger cover everything from low-level control wiring to high-current main feeders depending on the probe fitted. A built-in web server and Wi-Fi provide browser-based monitoring and setup on site, with DataViewSync™ for secure remote access over any internet connection. All recordings export to the free DataView® software for side-by-side analysis and reporting across both channels.
Features
Applications
| Electrical | |
| Measurement Type | AC |
| Channels | 2 |
| Measurement Range | 10 mA to 25,000 A (sensor dependent) |
| Sensor Type | Compatible current probes and sensors |
| Frequency Range | 45 to 65 Hz (Channel 1 only) |
| Accuracy | ±(1% R + 0.1% Inom) |
| Resolution | Sensor dependent |
| General | |
| Power Supply | 3 x AA batteries or USB |
| Recording | |
| Normal Mode | 3 days |
| Extended Mode | Up to 10 weeks (15-minute aggregation) |
| Data Storage and Reporting | |
| Recording Sessions | Up to 200 |
| Storage | 8 GB micro SD (internal) |
| Aggregation Intervals | 1 to 60 minutes, 1-second trends |
| Data Interface | USB and Wi-Fi |
| Software | DataView® and DataViewSync™ |
| Mechanical and Environmental | |
| Mounting | Magnetic |
| IP Rating | IP54 |
| CAT Rating | 600 V CAT IV, 1000 V CAT III |
| Dimensions | 6.77 x 2.83 x 1.34" (17.2 x 7.2 x 3.4 cm) |
| Weight | 10.58 oz (300 g) |
