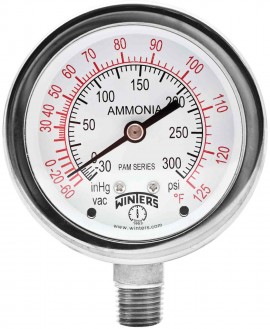

To measure pressure and temperature of most ammonia systems.
To measure pressure and temperature of most ammonia systems.
Features
Applications
Used to display pressure and temperature on refrigeration systems.
| Range | 30" Hg-0-150 psi/deg f |
| Dial | 2.5" White aluminum with black and red markings |
| Case | 2.5" Steel, painted black |
| Lens | Polycarbonate |
| Ring | 2.5" Steel painted black |
| Socket | 316L SS |
| Connection | 1/4" NPT standard |
| Bourdon Tube | 316L SS, drawn seamless |
| Movement | 304 SS |
| Pointer | Aluminum, anodized black |
| Welding | TIG |
| Over-Pressure Limit | 30% of full scale value |
| Working Pressure | Maximum 75% of full scale value |
| Ambient/Process Temperature | Dry: -40 to 150°F (-40 to 65°C) Glycerin filled: -4 to 150°F (-20 to 65°C) |
| Accuracy | ±1.5% of full scale |
| Enclosure Rating | IP65 |
