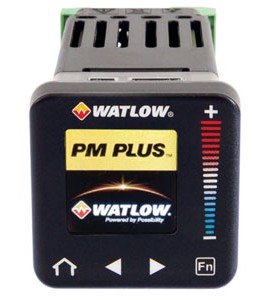

The PM PLUS®, the enhanced EZ-ZONE® PM, is now more intuitive and features an enhanced interface for easier programming and readability with a SMOOTH-TOUCH™ keypad creating an industry leading user experience.
The PM PLUS®, the enhanced EZ-ZONE® PM, is now more intuitive and features an enhanced interface for easier programming and readability with a SMOOTH-TOUCH™ keypad creating an industry leading user experience.
The PM PLUS is backwards compatible with legacy EZ-ZONE PM controllers but offers many user upgrades including an intuitive menu flow allowing the controller to be easily configured. It also continues to offer the industry leading Bluetooth® connectivity with the EZ-LINK™ mobile app for remote access capability and full descriptions of parameters and error codes. The PM PLUS improves the user experience by reducing the complexity at the front of the control while eliminating the dependency of cables when configuring the product. Like the original EZ-ZONE PM, the PM PLUS can be ordered as a PID controller, or an integrated controller with multiple functions combined into one.
Features
Intuitive Menu Flow
SMOOTH TOUCH keypad
Bluetooth® compatible with EZ-LINK™ mobile app
Integrated PID and limit controller
High amperage power control output
Current monitoring
Serial communication capabilities
Enhanced control options
Countdown timer option
10-point linearization curve
EZ-LINK™ mobile application for iPhone® and Android™
Configuration communications with software
Advanced PID control algorithm
Built-in sensor compensation curves
Remote set point operation
Profile capability
Retransmit output
Factory Mutual (FM) approved over/under limit with auxiliary outputs
Memory for saving and restoring parameter settings
Agency approvals: UL® listed, CSA, CE, RoHS, W.E.E.E., FM, SEMI F47-0200, Class 1, Div. 2 rating on selected models
Touch-safe package
Programmable function key
Programmable menu system
Three-year warranty
| Controller | User-selectable heat/cool, on-off, P, PI, PD, PID or alarm action Auto-tune with TRU-TUNE+ adaptive control algorithm Control sampling rates: input = 10Hz, outputs = 10Hz |
| Profile Ramp/Soak | 4 profiles, 40 total steps Accuracy (typical): ±30 PPM at 77°F (25°C) ±30/-100 PPM at -4 to 149°F (-20 to 65°C) |
| Isolated Serial Communications | EIA 232/485, Modbus® RTU EtherNet/IP™/Modbus® TCP DeviceNet™ PROFIBUS DP SAE J1939 CAN bus |
| Wiring Termination—Touch-Safe Terminals | Input, power and controller output terminals are touch safe, removable, 12 to 22 AWG |
| Universal Input | Thermocouple, grounded or ungrounded sensors greater than 20MΩ input impedance, 3μA open sensor detection, 2kΩ source resistance max. RTD 2- or 3-wire, platinum, 100Ω and 1000Ω at 32°F (0°C) calibration to DIN curve (0.00385 Ω/Ω/°C) Process, 0–20mA at 100Ω, or 0–10VDC at 20kΩ, 0–50mV at 20MΩ, 0–1000Ω potentiometer; scalable; inverse scaling |
| Functional Operating Range | Type J: -346 to 2192°F (-210 to 1200°C) Type K: -454 to 2500°F (-270 to 1371°C) Type T: -454 to 750°F (-270 to 400°C) Type E: -454 to 1832°F (-270 to 1000°C) Type N: -454 to 2372°F (-270 to 1300°C) Type C: 32 to 4200°F (0 to 2315°C) Type D: 32 to 4200°F (0 to 2315°C) Type F: 32 to 2449°F (0 to 1343°C) Type R: -58 to 3214°F (-50 to 1767°C) Type S: -58 to 3214°F (-50 to 1767°C) Type B: 32 to 3300°F (0 to 1816°C) RTD (DIN): -328 to 1472°F (-200 to 800°C) Process: -1999 to 9999 units |
| Accuracy | Calibration accuracy and sensor conformity: ±0.1% of span, ±1°C at the calibrated ambient temperature and rated line voltage Types R, S, B; 0.2% Type T below -50°C; 0.2% Calibration ambient temperature at 77°F ±5°F (25°C ±3°C) Accuracy span: 1000°F (540°C) min. Temperature stability: ±0.1°F/°F (±0.1°C/°C) rise in ambient max. |
| Thermistor Input | 0 to 40kΩ, 0 to 20kΩ, 0 to 10kΩ, 0 to 5kΩ 2.25kΩ and 10kΩ base at 77°F (25°C) Linearization curves built-in |
| Current Transformer Input | Accepts 0–50mA signal (user-programmable range) Displayed operating range and resolution can be scaled and are user-programmable |
| Digital Inputs (DC Voltage) | Max. input: 36V at 3mA Logic: min. high state 3V at 0.25mA, max. low state 2V Max. short circuit: 20mA |
| Digital Inputs (Dry Contact) | Logic: min. open resistance 10kΩ, max. closed resistance 50Ω Max. short circuit: 20mA |
| 2 Digital I/O (ordered with power supply option) | Update rate: 10Hz Input type: user-selectable, dc voltage or dry contact Output type: switched dc Output voltage: 24V Output 5: 24mA max. or drive one 3-pole DIN-A-MITE® Output 6: 10mA max. |
| 6 Digital I/O (ordered with communication option) | Update rate: 10Hz Input type: user-selectable, dc voltage or dry contact Output type: user-selectable, switched dc or open collector Switched dc output voltage: 12 to 24VDC, depending on current draw Switched dc max. supplied current: 40mA at 20VDC and 80mA at 12VDC Switched dc max. low state: 2V Open collector max. switched voltage 32VDC Open collector max. switched current: 1.5A per output 8A total for all 6 outputs |
| Output Hardware | Switched dc: 22 to 32VDC at 30mA max. per single output and 40mA max. total per paired outputs (1 & 2, 3 & 4) Open collector: 30VDC max. at 100mA max. SSR, Form A, 24 to 240VAC, 1A at 50°F (10°C) to 0.5A at 149°F (65°C) resistive load, 264VAC max., opto-isolated, without contact suppression, 120/240VAC at 20VA pilot duty Electromechanical relay, Form A, 24 to 240VAC or 30VDC max., 5A resistive load, 100,000 cycles at rated load, 120/240 at 125VA or 24VDC at 25VA pilot duty Electromechanical relay, Form C, 24 to 240VAC or 30VDC max., 5A resistive load, 100,000 cycles at rated load, 120/240 at 125VA or 24VDC at 25VA pilot duty NO-ARC relay, Form A, 85 to 264VAC, 1A at 122°F (50°C), resistive load, no VDC, 2,000,000 cycles at rated load Universal process output: range selectable; 0 to 10VDC ±15mV into a min. 1,000Ω load with ≥ 2.5mV nominal resolution; 0 to 20mA ±30μA into 500Ω max. load with 5μA nominal resolution; accuracy: ±0.1% of output signal; linearity 100ppm/°C |
| Operator Interface | LCD display SMOOTH TOUCH keypad Programmable function key(s) |
| Line Voltage/Power | High voltage option: 85 to 264VAC, 47 to 63Hz Low voltage option: 20 to 28VAC, +10/-15%; 50/60Hz, ±5% or 12 to 40VDC Max. power consumption: 10VA (1⁄32 and 1⁄16 DIN); 14VA |
| Environment | Operating temperature: 0 to 149°F (0 to 65°C) Storage temperature: -40 to 185°F (-40 to 85°C) Relative humidity: 0 to 90% RH, non-condensing |
| Agency Approvals | cULus® UL®/EN/CSA C22.2 No 61010-1 Listed, File E185611 CSA C22.2 No. 24, File 158031 (1⁄32 and 1⁄16 DIN sizes) IP 67, IP 66 front seal UL® Type 4X front seal indoor locations cULus® ANSI/ISA 12.12.01-2012, CSA-C22.2 No. 213-1987, Class 1, Div. 2, Groups A, B, C and D, Temperature Code T4A, File E184390 (optional) FM Class 3545 (limit controls) CE, RoHS by design, W.E.E.E. EtherNet/IP™ and DeviceNet™ ODVA Conformance Tested displays |
| Controller | User-selectable heat/cool, on-off, P, PI, PD, PID or alarm action Auto-tune with TRU-TUNE+ adaptive control algorithm Control sampling rates: input = 10Hz, outputs = 10Hz |
| Profile Ramp/Soak | 4 profiles, 40 total steps Accuracy (typical): ±30 PPM at 77°F (25°C) ±30/-100 PPM at -4 to 149°F (-20 to 65°C) |
| Isolated Serial Communications | EIA 232/485, Modbus® RTU EtherNet/IP™/Modbus® TCP DeviceNet™ PROFIBUS DP SAE J1939 CAN bus |
| Wiring Termination—Touch-Safe Terminals | Input, power and controller output terminals are touch safe, removable, 12 to 22 AWG |
| Universal Input | Thermocouple, grounded or ungrounded sensors greater than 20MΩ input impedance, 3μA open sensor detection, 2kΩ source resistance max. RTD 2- or 3-wire, platinum, 100Ω and 1000Ω at 32°F (0°C) calibration to DIN curve (0.00385 Ω/Ω/°C) Process, 0–20mA at 100Ω, or 0–10VDC at 20kΩ, 0–50mV at 20MΩ, 0–1000Ω potentiometer; scalable; inverse scaling |
| Functional Operating Range | Type J: -346 to 2192°F (-210 to 1200°C) Type K: -454 to 2500°F (-270 to 1371°C) Type T: -454 to 750°F (-270 to 400°C) Type E: -454 to 1832°F (-270 to 1000°C) Type N: -454 to 2372°F (-270 to 1300°C) Type C: 32 to 4200°F (0 to 2315°C) Type D: 32 to 4200°F (0 to 2315°C) Type F: 32 to 2449°F (0 to 1343°C) Type R: -58 to 3214°F (-50 to 1767°C) Type S: -58 to 3214°F (-50 to 1767°C) Type B: 32 to 3300°F (0 to 1816°C) RTD (DIN): -328 to 1472°F (-200 to 800°C) Process: -1999 to 9999 units |
| Accuracy | Calibration accuracy and sensor conformity: ±0.1% of span, ±1°C at the calibrated ambient temperature and rated line voltage Types R, S, B; 0.2% Type T below -50°C; 0.2% Calibration ambient temperature at 77°F ±5°F (25°C ±3°C) Accuracy span: 1000°F (540°C) min. Temperature stability: ±0.1°F/°F (±0.1°C/°C) rise in ambient max. |
| Thermistor Input | 0 to 40kΩ, 0 to 20kΩ, 0 to 10kΩ, 0 to 5kΩ 2.25kΩ and 10kΩ base at 77°F (25°C) Linearization curves built-in |
| Current Transformer Input | Accepts 0–50mA signal (user-programmable range) Displayed operating range and resolution can be scaled and are user-programmable |
| Digital Inputs (DC Voltage) | Max. input: 36V at 3mA Logic: min. high state 3V at 0.25mA, max. low state 2V Max. short circuit: 20mA |
| Digital Inputs (Dry Contact) | Logic: min. open resistance 10kΩ, max. closed resistance 50Ω Max. short circuit: 20mA |
| 2 Digital I/O (ordered with power supply option) | Update rate: 10Hz Input type: user-selectable, dc voltage or dry contact Output type: switched dc Output voltage: 24V Output 5: 24mA max. or drive one 3-pole DIN-A-MITE® Output 6: 10mA max. |
| 6 Digital I/O (ordered with communication option) | Update rate: 10Hz Input type: user-selectable, dc voltage or dry contact Output type: user-selectable, switched dc or open collector Switched dc output voltage: 12 to 24VDC, depending on current draw Switched dc max. supplied current: 40mA at 20VDC and 80mA at 12VDC Switched dc max. low state: 2V Open collector max. switched voltage 32VDC Open collector max. switched current: 1.5A per output 8A total for all 6 outputs |
| Output Hardware | Switched dc: 22 to 32VDC at 30mA max. per single output and 40mA max. total per paired outputs (1 & 2, 3 & 4) Open collector: 30VDC max. at 100mA max. SSR, Form A, 24 to 240VAC, 1A at 50°F (10°C) to 0.5A at 149°F (65°C) resistive load, 264VAC max., opto-isolated, without contact suppression, 120/240VAC at 20VA pilot duty Electromechanical relay, Form A, 24 to 240VAC or 30VDC max., 5A resistive load, 100,000 cycles at rated load, 120/240 at 125VA or 24VDC at 25VA pilot duty Electromechanical relay, Form C, 24 to 240VAC or 30VDC max., 5A resistive load, 100,000 cycles at rated load, 120/240 at 125VA or 24VDC at 25VA pilot duty NO-ARC relay, Form A, 85 to 264VAC, 1A at 122°F (50°C), resistive load, no VDC, 2,000,000 cycles at rated load Universal process output: range selectable; 0 to 10VDC ±15mV into a min. 1,000Ω load with ≥ 2.5mV nominal resolution; 0 to 20mA ±30μA into 500Ω max. load with 5μA nominal resolution; accuracy: ±0.1% of output signal; linearity 100ppm/°C |
| Operator Interface | LCD display SMOOTH TOUCH keypad Programmable function key(s) |
| Line Voltage/Power | High voltage option: 85 to 264VAC, 47 to 63Hz Low voltage option: 20 to 28VAC, +10/-15%; 50/60Hz, ±5% or 12 to 40VDC Max. power consumption: 10VA (1⁄32 and 1⁄16 DIN); 14VA |
| Environment | Operating temperature: 0 to 149°F (0 to 65°C) Storage temperature: -40 to 185°F (-40 to 85°C) Relative humidity: 0 to 90% RH, non-condensing |
| Agency Approvals | cULus® UL®/EN/CSA C22.2 No 61010-1 Listed, File E185611 CSA C22.2 No. 24, File 158031 (1⁄32 and 1⁄16 DIN sizes) IP 67, IP 66 front seal UL® Type 4X front seal indoor locations cULus® ANSI/ISA 12.12.01-2012, CSA-C22.2 No. 213-1987, Class 1, Div. 2, Groups A, B, C and D, Temperature Code T4A, File E184390 (optional) FM Class 3545 (limit controls) CE, RoHS by design, W.E.E.E. EtherNet/IP™ and DeviceNet™ ODVA Conformance Tested displays |
