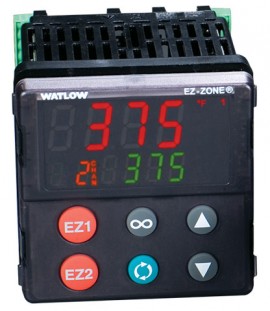

Watlow EZ-ZONE PM Panel Mount Integrated PID Controller with profiling ramp/soak and battery back-up, ¼ DIN, 100 to 240 V AC

Model: PM4B2EC-3REJAAA

Watlow EZ-ZONE PM Panel Mount Integrated PID Controller with profiling ramp/soak and battery back-up, ¼ DIN, 100 to 240 V AC-

Downloads: datasheet manual

More Watlow Products

Ask an Expert

Watlow EZ-ZONE PM Panel Mount Integrated PID Controller with profiling ramp/soak and battery back-up, ¼ DIN, 100 to 240 V AC

Model: PM4B2EC-3REJAAA

Take the pain out of meeting your thermal loop requirements, this ¼ DIN integrated PID controller offers control options to reduce system complexity and thermal loop ownership cost. In addition, it features a power supply of 100 to 240 V AC, two digital I/O points, and profiling ramp/soak and battery back-up with a real-time clock.

Take the pain out of meeting your thermal loop requirements, this ¼ DIN integrated PID controller offers control options to reduce system complexity and thermal loop ownership cost. In addition, it features a power supply of 100 to 240 V AC, two digital I/O points, and profiling ramp/soak and battery back-up with a real-time clock.

Discontinued!

This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:

Visit our Process Controllers category for similar products.

Or let's do a search and help you find what you need:

Watlow PM4B2EC-3REJAAA Offers

Provides a wide range of serial communications capabilities, this panel mount controller is ideal for solving your thermal loop requirements.

Features

  • Integrated PID: Reduces wiring time and termination complexity compared with connecting discrete products, decreases required panel space, lowers installation costs, and increases user and equipment safety for over/under temperature conditions
  • 10-point linearization curve: Improves sensor accuracy
  • Serial communication capabilities: Provides a wide range of protocol choices including EtherNet/IP™ and Modbus® TCP, and supports network connectivity to a PC or PLC
  • Advanced PID control algorithm: Offers TRU-TUNE®+ adaptive control to provide tighter control for demanding applications, and provides auto-tune for fast, efficient start-up
  • Remote set point operation: Supports convenient set point manipulation from a remote device such as a master control or PLC
  • Profile capability: Offers pre-programmed process control, and allows ramp/soak programming with 40 total steps, battery backup and real time clock
  • Retransmit output: Supports industry needs for recording
  • Factory Mutual (FM) approved over/under limit with auxiliary outputs: Increases user and equipment safety for over/under temperature conditions
  • Agency approvals: UL® listed, CSA, CE, RoHS, W.E.E.E.: Assures prompt product acceptance, and reduces end product documentation costs
  • Touch-safe package: Increases safety for installer/operator, and complies with IP2X requirements
  • Programmable menu system: Reduces setup time and increases operator efficiency

Applications

  • Medical
  • Photovoltaic

Watlow PM4B2EC-3REJAAA Specifications

Controller User-selectable heat/cool, on-off, P, PI, PD, PID or alarm action, not valid for limit controllers
Auto-tune with TRU-TUNE+ adaptive control algorithm
Control sampling rates: input = 10 Hz, outputs = 10 Hz
Profile Ramp/Soak - Real Time Clock and Battery Backup 4 profiles, 40 total steps
Accuracy (typical): ±30 PPM at 77°F (25°C), +30/-100 PPM at -4 to 149°F (-20 to 65°C)
Battery type/typical life: lithium, three cumulative years unpowered at 77°F (25°C)
Isolated Serial Communications EtherNet/IP™/Modbus® TCP
Wiring Termination - Touch-Safe Terminals Input, power and controller output terminals are touch safe, removable, 12 to 22 AWG
Universal Input Thermocouple, grounded or ungrounded sensors >20 MΩ input impedance, 3 μA open sensor detection, 2 kΩ source resistance maximum
RTD 2- or 3-wire, platinum, 100 Ω and 1000 Ω at 32°F (0°C) calibration to DIN curve (0.00385 Ω/Ω/°C)
Process, 0 to 20 mA at 100 Ω, or 0 to 10 V DC at 20 kΩ, 0 to 50 mV at 20 MΩ, 0 to 1000 Ω potentionmeter; scalable; inverse scaling
Functional Operating Range Type J: -346 to 2192°F (-210 to 1200°C)
Type K: -454 to 2500°F (-270 to 1371°C)
Type T: -454 to 750°F (-270 to 400°C)
Type E: -454 to 1832°F (-270 to 1000°C)
Type N: -454 to 2372°F (-270 to 1300°C)
Type C: 32 to 4200°F (0 to 2315°C)
Type D: 32 to 4200°F (0 to 2315°C)
Type F: 32 to 2449°F (0 to 1343°C)
Type R: -58 to 3214°F (-50 to 1767°C)
Type S: -58 to 3214°F (-50 to 1767°C)
Type B: 32 to 3300°F (0 to 1816°C)
RTD (DIN): -328 to 1472°F (-200 to 800°C)
Process: -1999 to 9999 units
Accuracy Calibration accuracy and sensor conformity: ±0.1% of span, ±1°C at the calibrated ambient temperature and rated line voltage
Types R, S, B; 0.2%
Type T below -50°C; 0.2%
Calibration ambient temperature at 77°F ±5°F (25°C ±3°C)
Accuracy span: 1000°F (540°C) minimum
Temperature stability: ±0.1°F/°F (±0.1°C/°C) rise in ambient maximum
Digital Inputs DC voltage
Maximum input: 36 V at 3 mA
Logic: minimum high state 3 V at 0.25 mA, maximum low state 2 V

Dry contact
Logic: minimum open resistance 10 kΩ, maximum closed resistance 50 Ω
Maximum short circuit: 20 mA
Two Digital I/O Update rate: 10 Hz
Input type: User-selectable, DC voltage or dry contact
Output type: Switched DC
Output voltage: 24 V
Output 5: 24 mA maximum or drive one 3-pole DIN-A-MITE®
Output 6: 10 mA maximum
Output Hardware Switched DC: 22 to 32 V DC at 30 mA maximum per single output and 40 mA maximum total per paired outputs (1 and 2, 3 and 4)
Electromechanical relay, Form C, 24 to 240 V AC or 30 V DC maximum, 5 A resistive load, 100,000 cycles at rated load, 120/240 at 125 VA or 24 V AC at 25 VA pilot duty
Electromechanical relay, Form A, 24 to 240 V AC or 30 V DC maximum, 5 A resistive load, 100,000 cycles at rated load, 120/240 at 125 VA or 24 V AC at 25 VA pilot duty
Operator Interface Dual 4-digit, 7-segment LED displays
Advance, infinity, up and down keys, plus two programmable EZ-KEY(s)
Typical display update rate: 1 Hz
Line Voltage/Power Maximum power consumption: 14 VA
Data retention upon power failure via nonvolatile memory
Compliant with SEMI F47-0200, Figure R1-1 voltage sag requirements at 24 V AC or higher
Environment Operating temperature: 0 to 149°F (-18 to 65°C)
Storage temperature: -40 to 185°F (-40 to 85°C)
Relative humidity: 0 to 90% RH, non-condensing
Agency Approvals cULus® UL®/EN/CSA C22.2 No 61010-1 Listed, File E185611
CE, RoHS by design, W.E.E.E.
EtherNet/IP™ and DeviceNet™ ODVA Conformance Tested
DIN Size ¼
Dimensions 4.65 x 3.95 x 3.95" (118.1 x 100.3 x 100.3 mm)
Weight 11.7 oz (331 g)
Click here for complete specifications on the Watlow PM4B2EC-3REJAAA

What's included with the Watlow PM4B2EC-3REJAAA

  • Panel Mount Integrated PID Controller
  • Three-Year Warranty
datasheet for the Watlow EZ-ZONE PM Panel Mount Integrated PID Controller with profiling ramp/soak and battery back-up, ¼ DIN, 100 to 240 V AC manual for the Watlow EZ-ZONE PM Panel Mount Integrated PID Controller with profiling ramp/soak and battery back-up, ¼ DIN, 100 to 240 V AC
