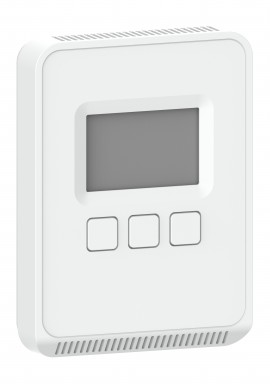

Featuring a sleek housing for commercial spaces, this sensor uses a 1.8 kOhm curve matched to TAC systems. The integrated LCD allows for local temperature viewing without affecting the controller signal.
Featuring a sleek housing for commercial spaces, this sensor uses a 1.8 kOhm curve matched to TAC systems. The integrated LCD allows for local temperature viewing without affecting the controller signal.
| Color | Matte White |
| Display Size | 2.05 in (52 mm) |
| Display Type | Segmented LCD, with 3 Buttons |
| Electrical Wiring Size | Screw terminals, 18-24 AWG |
| Enclosure Material | High impact ABS plastic |
| IP Protection | IP20 |
| Input Specifications | Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz |
| Measurement Type | Temperature |
| Operating Humidity | 0 to 95% RH non-condensing |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Output Specifications | Selectable 4 to 20 mA, 0 to 5 V, 0 to 10 V |
| Outputs | Analog |
| Override | Yes |
| Setpoint Range | Temperature: 0 to 50°C (32 to 122°F) / 10 to 35°C (50 to 95°F), selectable Fan Speed: Off, Low, Med., High. |
| Setpoint Specifications | 0-10Vdc. Temperature or fan speed (one setpoint type is selectable via dip switch) |
| Setpoint | Yes |
| Standards EMC | EN61000 Series to industrial immunity |
| Temperature Measurement Range | 0 to 50°C (32 to 122°F) |
| Temperature Measurement Resolution | 0.1°C (0.1°F) |
| Temperature Sensor Type | Thermistor, 1.8K |
