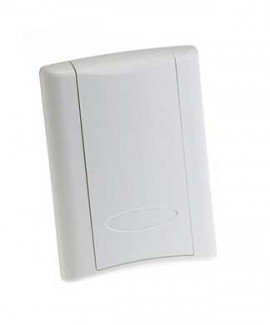

The humidity monitoring deluxe wall sensor provides an ideal solution for measuring the relative humidity in all conditions and features low-profile housing with an LCD for easy visibility.
The humidity monitoring deluxe wall sensor provides an ideal solution for measuring the relative humidity in all conditions and features low-profile housing with an LCD for easy visibility.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:
The humidity monitoring deluxe wall sensor provides an ideal solution for measuring the relative humidity in all conditions and features low-profile housing with an LCD for easy visibility.
Features
Applications
| HS Element | Digitally profiled thin-film capacitive (32-bit mathematics) U.S. Patent 5,844,138 |
| Accuracy | ±1% at 12 to 60% RH (multi-point calibration, NIST traceable) at 77°F (25°C) from 10 to 80% |
| Reset Rate | 24 hours |
| Stability | ±1% at 68°F (20°C) annually, for 2 years |
| Operating Humidity Range | 0 to 100% RH (non-condensing) |
| Hysteresis | 1.5% typical |
| Temperature Coefficient | ±0.1% RH/°C above or below 77°F (25°C) (typical) |
| Analog Output | 4 to 20 mA mode: 2-wire, polarity insensitive (clipped and capped); 0 to 5 V/0 to 10 V mode: 3-wire, observe polarity |
| Scaling | 0 to 100% RH |
| Operating Temperature Range | 50 to 95°F (10 to 35°C) |
| Input Power | 4 to 20 mA mode: loop powered 12 to 30 VDC only, 30 mA max.; 0 to 5 V/0 to 10 V mode: 12 to 30 VDC/24 VAC, 15 mA max |
| Temperature Transmitter Output | Digital, 4 to 20 mA (clipped and capped) or 0 to 5 V/0 to 10 V output; accuracy ±1°F (±0.5°C) typical |
| HS Element | Digitally profiled thin-film capacitive (32-bit mathematics) U.S. Patent 5,844,138 |
| Accuracy | ±1% at 12 to 60% RH (multi-point calibration, NIST traceable) at 77°F (25°C) from 10 to 80% |
| Reset Rate | 24 hours |
| Stability | ±1% at 68°F (20°C) annually, for 2 years |
| Operating Humidity Range | 0 to 100% RH (non-condensing) |
| Hysteresis | 1.5% typical |
| Temperature Coefficient | ±0.1% RH/°C above or below 77°F (25°C) (typical) |
| Analog Output | 4 to 20 mA mode: 2-wire, polarity insensitive (clipped and capped); 0 to 5 V/0 to 10 V mode: 3-wire, observe polarity |
| Scaling | 0 to 100% RH |
| Operating Temperature Range | 50 to 95°F (10 to 35°C) |
| Input Power | 4 to 20 mA mode: loop powered 12 to 30 VDC only, 30 mA max.; 0 to 5 V/0 to 10 V mode: 12 to 30 VDC/24 VAC, 15 mA max |
| Temperature Transmitter Output | Digital, 4 to 20 mA (clipped and capped) or 0 to 5 V/0 to 10 V output; accuracy ±1°F (±0.5°C) typical |
