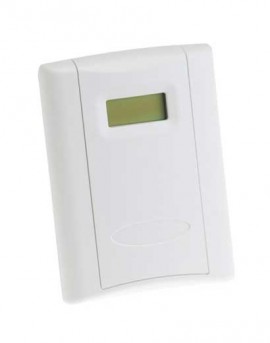

The humidity monitoring deluxe wall sensor provides an ideal solution for measuring the relative humidity in all conditions and is equipped with a thin-film capacitive sensor that is easily replaceable in the field.
The humidity monitoring deluxe wall sensor provides an ideal solution for measuring the relative humidity in all conditions and is equipped with a thin-film capacitive sensor that is easily replaceable in the field.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
The humidity monitoring deluxe wall sensor provides an ideal solution for measuring the relative humidity in all conditions and is equipped with a thin-film capacitive sensor that is easily replaceable in the field.
Features
Applications
| HS Element | Digitally profiled thin-film capacitive (32-bit mathematics) U.S. Patent 5,844,138 |
| Accuracy | ±1% at 12 to 60% RH (multi-point calibration, NIST traceable) at 77°F (25°C) from 10 to 80% |
| Reset Rate | 24 hours |
| Stability | ±1% at 68°F (20°C) annually, for 2 years |
| Operating Humidity Range | 0 to 100% RH (non-condensing) |
| Hysteresis | 1.5% typical |
| Temperature Coefficient | ±0.1% RH/°C above or below 77°F (25°C) (typical) |
| Analog Output | 4 to 20 mA mode: 2-wire, polarity insensitive (clipped and capped); 0 to 5 V/0 to 10 V mode: 3-wire, observe polarity |
| Scaling | 0 to 100% RH |
| Operating Temperature Range | 50 to 95°F (10 to 35°C) |
| Input Power | 4 to 20 mA mode: loop powered 12 to 30 VDC only, 30 mA max.; 0 to 5 V/0 to 10 V mode: 12 to 30 VDC/24 VAC, 15 mA max |
| Temperature Transmitter Output | Digital, 4 to 20 mA (clipped and capped) or 0 to 5 V/0 to 10 V output; accuracy ±1°F (±0.5°C) typical |
| HS Element | Digitally profiled thin-film capacitive (32-bit mathematics) U.S. Patent 5,844,138 |
| Accuracy | ±1% at 12 to 60% RH (multi-point calibration, NIST traceable) at 77°F (25°C) from 10 to 80% |
| Reset Rate | 24 hours |
| Stability | ±1% at 68°F (20°C) annually, for 2 years |
| Operating Humidity Range | 0 to 100% RH (non-condensing) |
| Hysteresis | 1.5% typical |
| Temperature Coefficient | ±0.1% RH/°C above or below 77°F (25°C) (typical) |
| Analog Output | 4 to 20 mA mode: 2-wire, polarity insensitive (clipped and capped); 0 to 5 V/0 to 10 V mode: 3-wire, observe polarity |
| Scaling | 0 to 100% RH |
| Operating Temperature Range | 50 to 95°F (10 to 35°C) |
| Input Power | 4 to 20 mA mode: loop powered 12 to 30 VDC only, 30 mA max.; 0 to 5 V/0 to 10 V mode: 12 to 30 VDC/24 VAC, 15 mA max |
| Temperature Transmitter Output | Digital, 4 to 20 mA (clipped and capped) or 0 to 5 V/0 to 10 V output; accuracy ±1°F (±0.5°C) typical |
