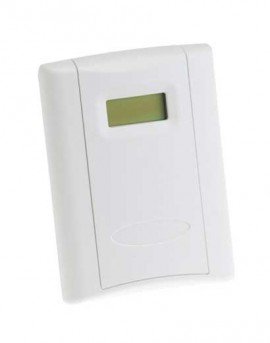

Veris HWL2XSX Deluxe Wall Humidity Sensor, standard

Model: HWL2XSX

Downloads: datasheet

Veris HWL2XSX Deluxe Wall Humidity Sensor, standard

Model: HWL2XSX

The humidity monitoring deluxe wall sensor provides an ideal solution for measuring the relative humidity in all conditions and has low-profile housing with an LCD for easy visibility.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Veris HW2LA2A Wall Humidity Sensor with 3-button LCD

Model: HW2LA2A

Versatile and easy to use, this humidity wall sensor features a large color touchscreen. With 2% measurement accuracy, this unit provides reliable results and comes equipped with a temperature and humidity sensor.

Learn More

Veris HW2LA2C Wall Humidity Sensor with 3-button LCD, 1k Ω platinum RTD

Model: HW2LA2C

Versatile and accurate, this humidity wall sensor features an LCD with three buttons. With a 1k Ω platinum resistance temperature detector, this wall sensor includes a humidity sensor and is easy to install.

Learn More

Veris HW2LA2D Wall Humidity Sensor with 3-button LCD, 10k type 2 thermistor

Model: HW2LA2D

Versatile and accurate, this humidity wall sensor features an LCD with three buttons. With a 10k type 2 thermistor, this wall sensor includes a humidity sensor and is easy to install.

Learn More

Veris HW2LA2H Wall Humidity Sensor, 1k Ω platinum RTD

Model: HW2LA2H

Versatile and accurate, this humidity wall sensor features an LCD with three buttons. With a 10k type 3 thermistor, this wall sensor includes a humidity sensor and is easy to install.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Veris HWL2XSX Offers

The humidity monitoring deluxe wall sensor provides an ideal solution for measuring the relative humidity in all conditions and has low-profile housing with an LCD for easy visibility.

Features

Thin-film polymer capacitive sensor element recovers from 100% saturation
Replace element in the field to maintain accuracy and minimize downtime
Polarity insensitive analog output provides flexible systems compatibility to save time in the field, and to stock fewer devices
HS element is microprocessor profiled with on-board nonvolatile memory

Applications

Managing Energy Systems
Controlling HVAC/R Systems for Improved Comfort and Energy Savings
Museums, Schools, Printing Shops and Other Locations Requiring Humidity Control
Facilitating Compliance with ASHRAE Standards for Environmental Control and Indoor Air Quality

Veris HWL2XSX Specifications

HS Element	Digitally profiled thin-film capacitive (32-bit mathematics) U.S. Patent 5,844,138
Accuracy	±1% at 12 to 60% RH (multi-point calibration, NIST traceable) at 77°F (25°C) from 10 to 80%
Reset Rate	24 hours
Stability	±1% at 68°F (20°C) annually, for 2 years
Operating Humidity Range	0 to 100% RH (non-condensing)
Hysteresis	1.5% typical
Temperature Coefficient	±0.1% RH/°C above or below 77°F (25°C) (typical)
Analog Output	4 to 20 mA mode: 2-wire, polarity insensitive (clipped and capped); 0 to 5 V/0 to 10 V mode: 3-wire, observe polarity
Scaling	0 to 100% RH
Operating Temperature Range	50 to 95°F (10 to 35°C)
Input Power	4 to 20 mA mode: loop powered 12 to 30 VDC only, 30 mA max.; 0 to 5 V/0 to 10 V mode: 12 to 30 VDC/24 VAC, 15 mA max
Temperature Transmitter Output	Digital, 4 to 20 mA (clipped and capped) or 0 to 5 V/0 to 10 V output; accuracy ±1°F (±0.5°C) typical

Click here for complete specifications on the Veris HWL2XSX

What's included with the Veris HWL2XSX

Veris HWL2XSX Deluxe Wall Humidity Sensor, standard

datasheet for the Veris HWL2XSX Deluxe Wall Humidity Sensor, standard

Description ➕➖

Veris HWL2XSX Offers

The humidity monitoring deluxe wall sensor provides an ideal solution for measuring the relative humidity in all conditions and has low-profile housing with an LCD for easy visibility.

Features

Thin-film polymer capacitive sensor element recovers from 100% saturation
Replace element in the field to maintain accuracy and minimize downtime
Polarity insensitive analog output provides flexible systems compatibility to save time in the field, and to stock fewer devices
HS element is microprocessor profiled with on-board nonvolatile memory

Applications

Managing Energy Systems
Controlling HVAC/R Systems for Improved Comfort and Energy Savings
Museums, Schools, Printing Shops and Other Locations Requiring Humidity Control
Facilitating Compliance with ASHRAE Standards for Environmental Control and Indoor Air Quality

Specifications ➕➖

Veris HWL2XSX Specifications

HS Element	Digitally profiled thin-film capacitive (32-bit mathematics) U.S. Patent 5,844,138
Accuracy	±1% at 12 to 60% RH (multi-point calibration, NIST traceable) at 77°F (25°C) from 10 to 80%
Reset Rate	24 hours
Stability	±1% at 68°F (20°C) annually, for 2 years
Operating Humidity Range	0 to 100% RH (non-condensing)
Hysteresis	1.5% typical
Temperature Coefficient	±0.1% RH/°C above or below 77°F (25°C) (typical)
Analog Output	4 to 20 mA mode: 2-wire, polarity insensitive (clipped and capped); 0 to 5 V/0 to 10 V mode: 3-wire, observe polarity
Scaling	0 to 100% RH
Operating Temperature Range	50 to 95°F (10 to 35°C)
Input Power	4 to 20 mA mode: loop powered 12 to 30 VDC only, 30 mA max.; 0 to 5 V/0 to 10 V mode: 12 to 30 VDC/24 VAC, 15 mA max
Temperature Transmitter Output	Digital, 4 to 20 mA (clipped and capped) or 0 to 5 V/0 to 10 V output; accuracy ±1°F (±0.5°C) typical

Click here for complete specifications on the Veris HWL2XSX

Included ➕➖

What's included with the Veris HWL2XSX

Veris HWL2XSX Deluxe Wall Humidity Sensor, standard

Resources ➕➖

datasheet for the Veris HWL2XSX Deluxe Wall Humidity Sensor, standard
