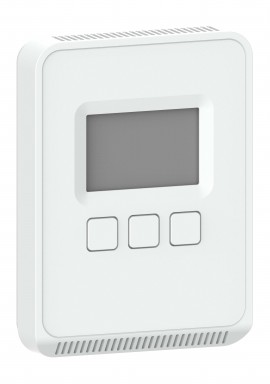

Versatile and accurate, this humidity wall sensor features an LCD with three buttons. Easy to install, this sensor features a 1.8K TAC thermistor. With 2% measurement accuracy, the unit provides reliable results and comes equipped with a temperature and humidity sensor.
Versatile and accurate, this humidity wall sensor features an LCD with three buttons. Easy to install, this sensor features a 1.8K TAC thermistor. With 2% measurement accuracy, the unit provides reliable results and comes equipped with a temperature and humidity sensor.
Compatible with various BAS controllers, this wall-mount humidity sensor provides flexible and reliable humidity and temperature control.
Features
Applications
| Color | Matte white |
| Display | Size: 2.05" (52 mm) Type: segmented LCD, with 3 buttons |
| Electrical Wiring Size | Screw terminals, 18 to 24 AWG |
| Enclosure Material | High impact ABS plastic |
| Humidity Measurement | Accuracy: ±2% from 10 to 80% RH at 77°F (25°C) Range: 0 to 100% RH Resolution: 0.1% RH Sensor Type: thin-film capacitive, replaceable |
| IP Protection | IP20 |
| Input Specifications | Class 2; 20 to 30 Vdc, 24 Vac, 50 to 60 Hz |
| Measurement Type | RH / Temperature |
| Operating Humidity | 0 to 95% RH non-condensing |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Output Specifications | Selectable 4 to 20 mA, 0 to 5 V, 0 to 10 V |
| Outputs | Analog |
| Override | Yes |
| Setpoint Range | Temperature: 32 to 122°F (0 to 50°C) / 50 to 95°F (10 to 35°C) Selectable humidity: 0 to 100% RH Fan Speed: off, low, medium, high |
| Setpoint Specifications | 0 to 10 Vdc Temperature, humidity or fan speed (one setpoint type is selectable via dip switch) |
| Setpoint | Yes |
| Standards EMC | EN61000 Series - industrial immunity |
| Temperature Measurement | Range: 32 to 122°F (0 to 50°C) Resolution: 0.1°F (0.1°C) Sensor type: thermistor, 1.8 k |
