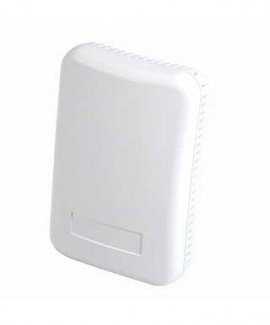

The humidity monitoring standard wall sensor offers an array of humidity control solutions and has thin-film capacitive sensor elements that provide high accuracy and performance.
The humidity monitoring standard wall sensor offers an array of humidity control solutions and has thin-film capacitive sensor elements that provide high accuracy and performance.
The humidity monitoring standard wall sensor offers an array of humidity control solutions and has thin-film capacitive sensor elements that provide high accuracy and performance.
Features
Applications
| Input Power | 12 (15 for 0 to 10 V) to 30 VDC/24 VAC, 15 mA max |
| HS Element | Digitally profiled thin-film capacitive, non-removable |
| Accuracy | ±3% at 77°F (25°C) from 10 to 90% RH |
| Reset Rate | 24 hours |
| Stability | ±1% at 68°F (20°C) annually, for 2 years |
| Operating Humidity Range | 0 to 100% RH (non-condensing) |
| Analog Output | 3-wire, observe polarity |
| Scaling | 0 to 100% RH |
| Transmitter Models Digital | 0 to 5 V/0 to 10 V output; accuracy ±1.3°C |
| Range | 50 to 95°F (10 to 35°C) |
| Input Power | 12 (15 for 0 to 10 V) to 30 VDC/24 VAC, 15 mA max |
| HS Element | Digitally profiled thin-film capacitive, non-removable |
| Accuracy | ±3% at 77°F (25°C) from 10 to 90% RH |
| Reset Rate | 24 hours |
| Stability | ±1% at 68°F (20°C) annually, for 2 years |
| Operating Humidity Range | 0 to 100% RH (non-condensing) |
| Analog Output | 3-wire, observe polarity |
| Scaling | 0 to 100% RH |
| Transmitter Models Digital | 0 to 5 V/0 to 10 V output; accuracy ±1.3°C |
| Range | 50 to 95°F (10 to 35°C) |
