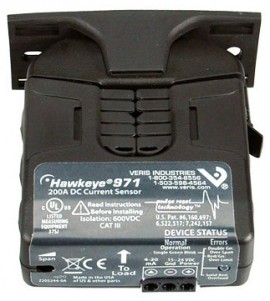

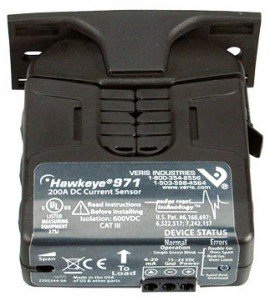

The Hawkeye 971 Series provides accurate load level monitoring of DC current loads. Using new Pulse Reset Technology™ with proven transducer circuitry, the H971 provides a superior solution for applications involving DC currents. It has no risk of permanent magnetization, ensuring longer life than traditional Hall Effect sensors. The H971 has a user-adjustable span to allow greater application flexibility.
The Hawkeye 971 Series provides accurate load level monitoring of DC current loads. Using new Pulse Reset Technology™ with proven transducer circuitry, the H971 provides a superior solution for applications involving DC currents. It has no risk of permanent magnetization, ensuring longer life than traditional Hall Effect sensors. The H971 has a user-adjustable span to allow greater application flexibility.
Features
Applications
| Current | Measurement Accuracy: ±0.5 A below 100 A, ±0.5% of F.S. above Measurement Range: 0 to 200 A Sensor Type: Current Transducer, AC |
| Monitored Wire Dimensions | 0.8" (21 mm) |
| Operating | Humidity: 10 to 90% RH, non-condensing Temperature: -22 to 140°F (-30 to 60°C) |
| Output Specifications | 4 to 20 mA |
| Relay | Coil Voltage: None Contact Ratings: None Poles/Throw: None |
| Measurement Type | DC Current |
| Mounting | Split Core |
| Electrical Wiring Dimensions | 24 to 14 AWG (0.2 to 2.1 mm²) |
| Current | Measurement Accuracy: ±0.5 A below 100 A, ±0.5% of F.S. above Measurement Range: 0 to 200 A Sensor Type: Current Transducer, AC |
| Monitored Wire Dimensions | 0.8" (21 mm) |
| Operating | Humidity: 10 to 90% RH, non-condensing Temperature: -22 to 140°F (-30 to 60°C) |
| Output Specifications | 4 to 20 mA |
| Relay | Coil Voltage: None Contact Ratings: None Poles/Throw: None |
| Measurement Type | DC Current |
| Mounting | Split Core |
| Electrical Wiring Dimensions | 24 to 14 AWG (0.2 to 2.1 mm²) |
