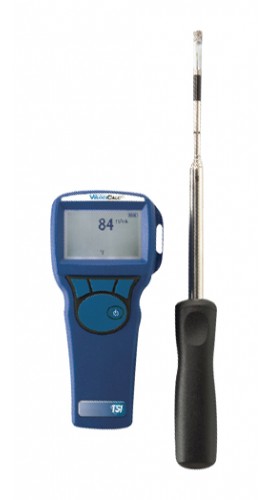

This meter measures and data logs several ventilation parameters using a single probe with multiple sensors. It measures velocity and temperature; calculates volumetric flow and data logs over 12,700 samples.
This meter measures and data logs several ventilation parameters using a single probe with multiple sensors. It measures velocity and temperature; calculates volumetric flow and data logs over 12,700 samples.
This meter packs multiple meters together in one convenient unit. Simultaneously measure and data log several ventilation parameters using a single probe with multiple sensors. Measuring velocity and air temperature, and calculating flow.
Features
Applications
| Velocity | |
| Range | 0 to 6,000 ft/min (0 to 30 m/s) |
| Accuracy | ±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater |
| Resolution | 1 ft/min (0.01 m/s) |
| Volumetric Flow Rate | |
| Range | Actual range is a function of velocity and duct size |
| Temperature | |
| Range | 0 to 200°F (-18 to 93°C) |
| Accuracy | ±0.5°F (±0.3°C) |
| Resolution | 0.1°F (0.1°C) |
| Meter Probe Dimensions | |
| Probe Length | 40" (101.6cm) |
| Probe Diameter of Tip | 0.28" (7.0mm) |
| Probe Diameter of Base | 0.51" (13.0mm) |
| Velocity | |
| Range | 0 to 6,000 ft/min (0 to 30 m/s) |
| Accuracy | ±3% of reading or ±3 ft/min (±0.015 m/s), whichever is greater |
| Resolution | 1 ft/min (0.01 m/s) |
| Volumetric Flow Rate | |
| Range | Actual range is a function of velocity and duct size |
| Temperature | |
| Range | 0 to 200°F (-18 to 93°C) |
| Accuracy | ±0.5°F (±0.3°C) |
| Resolution | 0.1°F (0.1°C) |
| Meter Probe Dimensions | |
| Probe Length | 40" (101.6cm) |
| Probe Diameter of Tip | 0.28" (7.0mm) |
| Probe Diameter of Base | 0.51" (13.0mm) |
