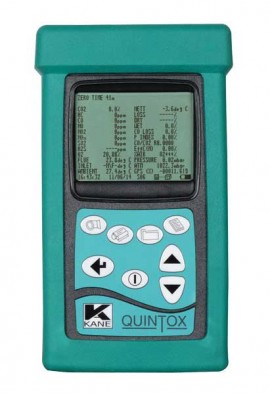

UEi K9206C2 Industrial Combustion Analyzer with NO and NO2 Sensors, 0 to 25% O2, 2,000 ppm CO

Model: K9206C2 | Order No: UEI-K9206C2 | UPC: 053533507300

Downloads: datasheet

More UEi Products

Ask an Expert

UEi K9206C2 Industrial Combustion Analyzer with NO and NO2 Sensors, 0 to 25% O2, 2,000 ppm CO

Model: K9206C2 | Order No: UEI-K9206C2 | UPC: 053533507300

Using this combustion analyzer, you can measure O2, CO, NO, NO2, inlet temperature, flue temperature and more.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Kane KANE958 Flue Gas Analyzer with direct CO, O₂, and CO sensor protection

Model: KANE958

Capable of testing domestic, commercial, and industrial boilers up to 5 mw, this flue gas analyzer with direct CO, O₂, and CO sensor protection has the latest upgradeable sensor technology. In addition, it comes with an easy-to-use rotary dial and is suitable for test and inspection applications.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

UEi K9206C2 Offers

Ideal for performing combustion performance and combustion efficiency checks, as well as installing, commissioning and servicing oil, gas or biomass appliances, this UEi K9206C2 Industrial Combustion Analyzer with NO and NO2 Sensors allows you to easily measure O2, CO, NO, NO2, inlet temperature, flue temperature and differential pressure/draft. Once you've recorded your measurements, you can print out the findings thanks to the on-board printer.

Features

Analyzer is capable of measuring O2, CO, NO, NO2, inlet temperature, flue temperature and differential pressure/draft
Calculates efficiency, CO2, net temperature differential, losses, excess air, CO/CO2 ratio and poison index
Works with up to 7 sensors (includes O2, CO, NO and NO2 sensors, additional sensors sold separately)
On-board printer lets you print out measurements on plain paper
Heated manifold helps prevent condensation
Wireless handset sends results to a base unit or compatible PC

UEi K9206C2 Specifications

Pressure Measurement Range	0 to 150 mbar
CO2 Measurement Range	0 to fuel value
Efficiency Measurement Range	0 to 100%
O2 Measurement Range	0 to 25%
CO Measurement Range	2,000 ppm
Flue Temperature Range	32 to 2,140°F (0 to 1,100°C)
Inlet Temperature Range	0 to 999°F (0 to 600°C)
Languages	3
Fuel Types	20
Gas Units	5
Pressure Units	6
NO2 Measurement Range	100 ppm
NO (High) Measurement Range	1,000 ppm
NO (Low) Measurement Range	100 ppm
Manufacturer Warranty	1-year limited

Click here for complete specifications on the UEi K9206C2

What's included with the UEi K9206C2

Combustion Analyzer
NO Sensor
NO2 Sensor
CO Sensor
O2 Sensor
12" (30.48 cm) Flue Probe with 15' (4.57 m) Hose
Battery Charger
Filter Bypass
Particle Filter
Sulfur Filter
Water Trap
Water Trap Filter
Owner's Manual

datasheet for the UEi K9206C2 Industrial Combustion Analyzer with NO and NO2 Sensors, 0 to 25% O2, 2,000 ppm CO
