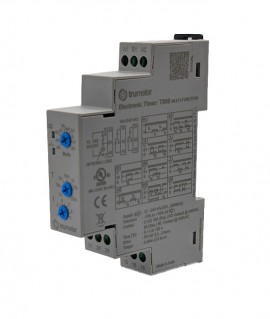

Universal compact DIN-rail multi-function timer relay powered by 12 to 240 VAC/DC for broad timing applications and control logic. Provides 2 changeover (2 C/O) relay outputs for expanded switching and interlocking.
Universal compact DIN-rail multi-function timer relay powered by 12 to 240 VAC/DC for broad timing applications and control logic. Provides 2 changeover (2 C/O) relay outputs for expanded switching and interlocking.
Features
Applications
| Timer Type/Mode | Multi Function Timer |
| Modes | Signal ON Delay Cyclic ON/OFF Cyclic OFF/ON Signal OFF/ON Impulse ON/OFF Accumulative Delay on Signal Impulse ON/OFF Leading Edge Impulse Trailing Edge Impulse Leading Edge Bi-State |
| Derived Modes | ON Delay, Interval |
| Supply Voltage | 12 to 240 V AC/DC |
| Supply Variation | -15% to +10% of supply voltage |
| Frequency | 50/60 Hz |
| Power Consumption (Max.) | 5 VA |
| Timing Range | 0.1 s to 100 h |
| Reset Time | 200 ms (Max.) |
| Setting Accuracy | ±5% of Full Scale |
| Repeat Accuracy | ±1% |
| Relay Output | 2 C/O |
| Contact Rating | 8A at 240 VAC / 5A at 24 VDC (Resistive) |
| Electrical Life | 5x105 |
| Mechanical Life | 1x106 |
| Utilization Category (AC-15) | Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A |
| Utilization Category (DC-13) | Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A |
| Operating Temperature | 14 to 140°F (-10 to 60°C) |
| Storage Temperature | -31 to 167°F (-25 to 75°C) |
| LED Indication | GREEN ➡ Power ON | YELLOW ➡ Relay ON |
| Enclosure | Flame Retardant UL 94-V0 |
| Mounting | DIN Rail |
| Certification | cULus, CE |
| Degree of Protection | IP 20 for terminals, IP30 for enclosure, IP40 for front side |
| Dimension (W x H x D) | 0.71 x 3.54 x 2.6 (18 x 90 x 66 mm) |
| Weight | 2.54 oz (72 g) |
