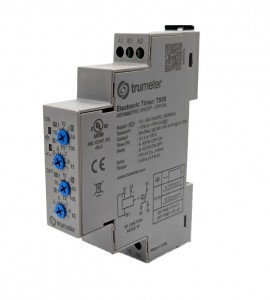

Trumeter TS Series Timer Switch Relay, 12 to 240 V AC/DC, asymmetric, 1 C/O, DIN rail

Model: TS08 | UPC: 5061089360275

Downloads: datasheet manual

Trumeter TS Series Timer Switch Relay, 12 to 240 V AC/DC, asymmetric, 1 C/O, DIN rail

Model: TS08 | UPC: 5061089360275

Universal compact DIN-rail asymmetric flasher timer relay powered by 12 to 240 VAC/DC, allowing independent ON and OFF timing for pulse/flash applications. Provides 1 changeover (C/O) relay output for control panel switching.

Sale Price	$40.12 USD
Regular Price	$50.15 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Trumeter TS08 Offers

Features

Ultra-Compact Design: Less than 19mm wide—perfect for tight spaces
Versatile Timing Functions: ON Delay, Signal OFF Delay, Star Delta, Multifunction, and Asymmetric models
Flexible Timing Ranges: Choose from 0.3s to 30h, 3s to 120s, or 0.1s to 100h
Reliable Switching: Integrated relay output for dependable operation
Energy Efficient: Low power consumption (5 VA to 10 VA)
LED Status Indicators: Clear visibility for power and relay activity
Durable Construction: Flame-retardant UL94-V0 housing for safety
Wide Operating Range: Performs in temperatures from 14 to 131°F (-10 to 55°C)

Applications

HVAC systems
Lighting control
Industrial equipment
Generator protection
Traffic signal controls
Marine
Industrial automation
Pump control

Trumeter TS08 Specifications

Timer Type/Mode	Asymmetric Timer
Modes	Asymmetric ON/OFF Asymmetric OFF/ON
Supply Voltage	12 to 240 V AC/DC
Supply Variation	-15% to +10% of supply voltage
Frequency	50/60 Hz
Power Consumption (Max.)	5 VA
Timing Range	0.1 s to 100 h
Reset Time	200 ms (Max.)
Setting Accuracy	±5% of Full Scale
Repeat Accuracy	±1%
Relay Output	1 C/O
Contact Rating	8A at 240 VAC / 5A at 24 VDC (Resistive)
Electrical Life	5x10⁵
Mechanical Life	1x10⁶
Utilization Category (AC-15)	Rated Voltage (Ue): 120/240 V, Rated Current (Ie): 3.0/1.5 A
Utilization Category (DC-13)	Rated Voltage (Ue): 24/125/250 V, Rated Current (Ie): 2.0/0.22/0.1 A
Operating Temperature	14 to 140°F (-10 to 60°C)
Storage Temperature	-31 to 167°F (-25 to 75°C)
LED Indication	GREEN ➡ Power ON \| AMBER ➡ Relay ON
Enclosure	Flame Retardant UL 94-V0
Mounting	DIN Rail
Certification	cULus, CE
Degree of Protection	IP 20 for terminals, IP30 for enclosure, IP40 for front side
Dimension (W x H x D)	0.71 x 3.54 x 2.6 (18 x 90 x 66 mm)
Weight	2.54 oz (72 g)

Click here for complete specifications on the Trumeter TS08

What's included with the Trumeter TS08

Trumeter TS Series Timer Switch Relay, 12 to 240 V AC/DC, asymmetric, 1 C/O, DIN rail

datasheet for the Trumeter TS Series Timer Switch Relay, 12 to 240 V AC/DC, asymmetric, 1 C/O, DIN rail manual for the Trumeter TS Series Timer Switch Relay, 12 to 240 V AC/DC, asymmetric, 1 C/O, DIN rail
