This digital time relay features a 3-digit display for easy programming. The key locking design protects this relay from tampering.
This digital time relay features a 3-digit display for easy programming. The key locking design protects this relay from tampering.

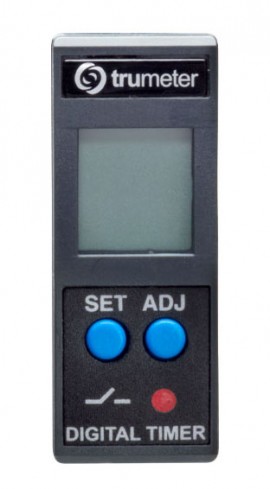

Get accurate measurements with the Trumeter 7957 Digital Time Relay with 18 Functions. Complete with a variety of non-signal and signal-based functions, it's ideal for a variety of applications. It's also easy to program, thanks to the 3-digit LCD. CE, U1 and cU1 approved for reliable performance.
Features
| Wide Timing Range | 0.1 seconds to 999 hours |
| Voltage | 24 to 240 VAC/VDC |
| Display | 3-digit LCD |
| Mounting | DIN rail |
| Number of Functions | 18 operating modes (non-signal and signal based) |
| Function Type | ON delay, cyclic OFF/ON, impulse on energizing, accumulative delay on signal, accumulate delay on inverted signal, signal ON/OFF delay, inverted signal ON delay (type 1 and 2), impulse ON/OFF, signal ON/OFF, leading edge impulse 1/2, trailing edge impulse 1/2, delayed impulse |
| Approval | CE, U1 and cU1 |
| Product Width | 0.69" (17.5 mm) housing |
| Wide Timing Range | 0.1 seconds to 999 hours |
| Voltage | 24 to 240 VAC/VDC |
| Display | 3-digit LCD |
| Mounting | DIN rail |
| Number of Functions | 18 operating modes (non-signal and signal based) |
| Function Type | ON delay, cyclic OFF/ON, impulse on energizing, accumulative delay on signal, accumulate delay on inverted signal, signal ON/OFF delay, inverted signal ON delay (type 1 and 2), impulse ON/OFF, signal ON/OFF, leading edge impulse 1/2, trailing edge impulse 1/2, delayed impulse |
| Approval | CE, U1 and cU1 |
| Product Width | 0.69" (17.5 mm) housing |
