Provides constant voltage or current operation with fine and coarse adjustment for both and can be used for bench testing and repair of circuit boards, vocational school/technical school/college level electronics classroom education, field service repair, and hobbyist with NIST certification. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Provides constant voltage or current operation with fine and coarse adjustment for both and can be used for bench testing and repair of circuit boards, vocational school/technical school/college level electronics classroom education, field service repair, and hobbyist with NIST certification. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

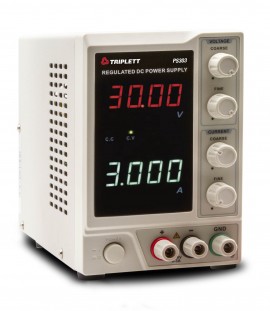

The power supply 30 V / 3 A DC has a reverse polarity protection.
Features
Applications
| Specifications | |
| Output Voltage | 0 to 30.00 V |
| Output Current | 0 to 3.000 A |
| Output Power | 96 W |
| Load Regulation | <0.01% + 3 mV, <0.1% + 5 mA |
| Line Regulation | <0.01% + 3 mV, <0.1% + 5 mA |
| Ripple and Noise | ≤1 mVrms, ≤3 mArms |
| Display | Dual 4-Digit LED (voltage and current) |
| Power | 110 to 220 VAC, 50/60 Hz |
| Dimensions | 4.1 x 6.1 x 8.3" (105 x 155 x 210 mm) |
| Weight | 6.6 lbs (3 kg) |
| Specifications | |
| Output Voltage | 0 to 30.00 V |
| Output Current | 0 to 3.000 A |
| Output Power | 96 W |
| Load Regulation | <0.01% + 3 mV, <0.1% + 5 mA |
| Line Regulation | <0.01% + 3 mV, <0.1% + 5 mA |
| Ripple and Noise | ≤1 mVrms, ≤3 mArms |
| Display | Dual 4-Digit LED (voltage and current) |
| Power | 110 to 220 VAC, 50/60 Hz |
| Dimensions | 4.1 x 6.1 x 8.3" (105 x 155 x 210 mm) |
| Weight | 6.6 lbs (3 kg) |
