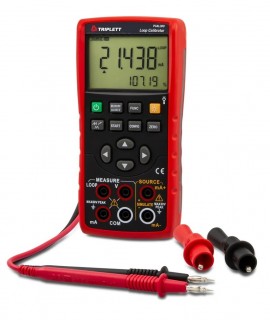

Triplett PCAL300 Loop Process Calibrator

Model: PCAL300 | UPC: 614395005450

Triplett PCAL300 Loop Process Calibrator

Model: PCAL300 | UPC: 614395005450

Measuring DC voltage/current and source DC mA current with an accuracy of 0.02%, this process calibrator can simultaneously provide 24V loop power to transmitter while conducting mA current measurement. In addition, it features an adjustable 0-20mA/4-20mA span with % readout, automatic sawtooth or triangular output current step function, auto power off, and a built-in flashlight.

Sale Price	$437.24 USD
Regular Price	$549.99 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Triplett PCAL300 Offers

The Triplett PCAL300 Loop Process Calibrator for benchtop and field industrial process device testing and calibration features an adjustable 0-20mA/4-20mA span with % readout, automatic sawtooth or triangular output current step function, auto power off, and a built-in flashlight.

Features

Easily measure DC voltage/current and source DC mA current
Loop power: Simultaneously provides 24V loop power to transmitters while conducting mA current measurements
High accuracy: Source and measure accuracy up to 0.02%
Versatile current span adjustment: Easily adjust the current span from 0-20mA/4-20mA with percentage readout
Dynamic output functions: Choose between automatic sawtooth or triangular output current step functions
Built-in functions: Flashlight, Auto Power Off, Lo Battery Indicator

Applications

Process Instrumentation Calibration
Field Instrumentation Troubleshooting
Loop-Powered Transmitter Testing
Control Valve Calibration
PLC and DCS System Setup
Energy Management Systems
Field Maintenance and Commissioning
Building Automation Systems
Water and Wastewater Treatment
Renewable Energy Systems

Triplett PCAL300 Specifications

Measurement
DC Voltage	30 V (0.001 V) Accuracy: ±(0.02% + 2 mV)
DC Current	30 mA (0.001 mA) Accuracy: ±(0.02% + 4μA)
Source
DC Current	30 mA (0.001 mA) Accuracy: ±(0.05% + 4μA)
Loop Power	24 V Accuracy: ±(10%)
General Specifications
Power	3 x AA batteries
Dimensions	7 x 3.5 x 2" (178 x 89 x 51 mm)
Weight	1 lbs (454 g)

What's included with the Triplett PCAL300

Process Calibrator
Test Leads
4 x Spare Fuses
Latch Key (for opening battery door)
3 x AA Batteries
One-Year Warranty

Description ➕➖

Triplett PCAL300 Offers

Features

Easily measure DC voltage/current and source DC mA current
Loop power: Simultaneously provides 24V loop power to transmitters while conducting mA current measurements
High accuracy: Source and measure accuracy up to 0.02%
Versatile current span adjustment: Easily adjust the current span from 0-20mA/4-20mA with percentage readout
Dynamic output functions: Choose between automatic sawtooth or triangular output current step functions
Built-in functions: Flashlight, Auto Power Off, Lo Battery Indicator

Applications

Process Instrumentation Calibration
Field Instrumentation Troubleshooting
Loop-Powered Transmitter Testing
Control Valve Calibration
PLC and DCS System Setup
Energy Management Systems
Field Maintenance and Commissioning
Building Automation Systems
Water and Wastewater Treatment
Renewable Energy Systems

Specifications ➕➖

Triplett PCAL300 Specifications

Measurement
DC Voltage	30 V (0.001 V) Accuracy: ±(0.02% + 2 mV)
DC Current	30 mA (0.001 mA) Accuracy: ±(0.02% + 4μA)
Source
DC Current	30 mA (0.001 mA) Accuracy: ±(0.05% + 4μA)
Loop Power	24 V Accuracy: ±(10%)
General Specifications
Power	3 x AA batteries
Dimensions	7 x 3.5 x 2" (178 x 89 x 51 mm)
Weight	1 lbs (454 g)

Included ➕➖

What's included with the Triplett PCAL300

Process Calibrator
Test Leads
4 x Spare Fuses
Latch Key (for opening battery door)
3 x AA Batteries
One-Year Warranty
