Equipped with True RMS for superior accuracy in non-sinusoidal or noisy waveforms, this multimeter boasts a backlit 6000/60,000 count LCD display with a bargraph for clear readings. In addition, it measures AC/DC Voltage and Current, μA Current, Resistance, Temperature, Capacitance, Frequency (electronic and electrical), and Duty Cycle.
Equipped with True RMS for superior accuracy in non-sinusoidal or noisy waveforms, this multimeter boasts a backlit 6000/60,000 count LCD display with a bargraph for clear readings. In addition, it measures AC/DC Voltage and Current, μA Current, Resistance, Temperature, Capacitance, Frequency (electronic and electrical), and Duty Cycle.

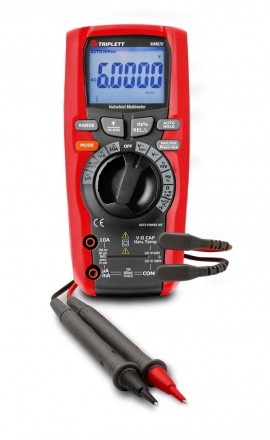

The Triplett MM870 Industrial-Grade Digital Multimeter is designed for professionals seeking precision, reliability, and durability in challenging environments.
The MM870 features an LPF (low pass filter) to mitigate frequency and harmonic interference, particularly useful when measuring variable frequency drives. Its Peak Hold (>1ms) with Min/Max captures and displays peak values for thorough analysis. The device also records Min/Max/Average values and includes a Data Hold function to freeze measurements, along with an AutoHold feature that updates readings upon detecting a new stable reading. The Relative mode is useful for comparison measurements against a stored reference value. Robustly built, the meter is waterproof (IP67), drop-proof up to 6.5 feet (2 meters), and adheres to a CAT IV 600V safety rating.
Features
Applications
| Display Counts | 6000/60,000 counts with bargraph |
| Basic Accuracy | ±0.05% |
| AC/DC Voltage | 1000 V |
| AC/DC Current | 10 A |
| AC/DC μA Current | 600 μA |
| Resistance | 60 MΩ |
| Temperature | -58 to 1832°F (-50 to 1000°C) |
| Capacitance | 6 mF |
| Frequency | Electronic: 20 MHz Electrical: 10 kHz |
| Duty Cycle | 0.1 to 99.9% |
| 4-20mA% | -25 to 125% |
| Continuity | <35Ω |
| Waterproof | IP67 |
| Drop Test | 6.5 ft (2 m) |
| Power | 4 x AAA batteries |
| Safety Category | CAT IV-600 V |
| Dimensions | 6.7 x 3 x 1.9" (170 x 75 x 48 mm) |
| Weight | 13.6 oz (386 g) |
| Display Counts | 6000/60,000 counts with bargraph |
| Basic Accuracy | ±0.05% |
| AC/DC Voltage | 1000 V |
| AC/DC Current | 10 A |
| AC/DC μA Current | 600 μA |
| Resistance | 60 MΩ |
| Temperature | -58 to 1832°F (-50 to 1000°C) |
| Capacitance | 6 mF |
| Frequency | Electronic: 20 MHz Electrical: 10 kHz |
| Duty Cycle | 0.1 to 99.9% |
| 4-20mA% | -25 to 125% |
| Continuity | <35Ω |
| Waterproof | IP67 |
| Drop Test | 6.5 ft (2 m) |
| Power | 4 x AAA batteries |
| Safety Category | CAT IV-600 V |
| Dimensions | 6.7 x 3 x 1.9" (170 x 75 x 48 mm) |
| Weight | 13.6 oz (386 g) |
