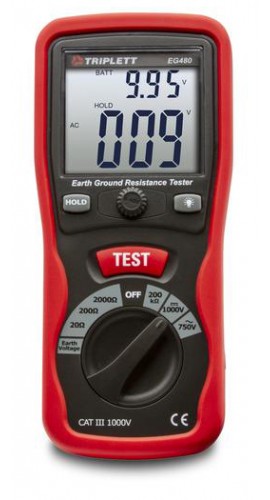

Providing an easy way to check the path to ground in installed or prospective systems, the tester measures earth ground resistance from 20 Ω to 2000 Ω. With a rugged design and multimeter functions, the tester also features a dual backlit LCD, data hold, auto power-off, and a low-battery indicator.
Providing an easy way to check the path to ground in installed or prospective systems, the tester measures earth ground resistance from 20 Ω to 2000 Ω. With a rugged design and multimeter functions, the tester also features a dual backlit LCD, data hold, auto power-off, and a low-battery indicator.
Features
Applications
| Earth Resistance | 20, 200, 2000 |
| Accuracy | ±2% |
| Resolution | 0.01 |
| Earth Voltage | 200 V |
| AC/DC Voltage | 750 ACV/1000 VDC |
| Resistance | 200 k |
| Continuity | <40 |
| Power | 6 x AA batteries |
| Dimensions | 7.8 x 3.6 x 1.9" (200 x 92 x 50 mm) |
| Weight | 1.5 lbs (700 g) |
| Earth Resistance | 20, 200, 2000 |
| Accuracy | ±2% |
| Resolution | 0.01 |
| Earth Voltage | 200 V |
| AC/DC Voltage | 750 ACV/1000 VDC |
| Resistance | 200 k |
| Continuity | <40 |
| Power | 6 x AA batteries |
| Dimensions | 7.8 x 3.6 x 1.9" (200 x 92 x 50 mm) |
| Weight | 1.5 lbs (700 g) |
