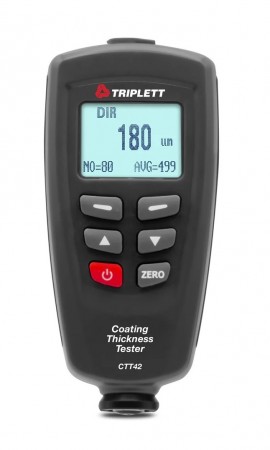

This provides fast, accurate measurement of coating thickness from 0 to 49 mils (0 to 1250 μm). Ideal for paint, plating, and surface inspections, it helps ensure quality control and material compliance in automotive, manufacturing, and industrial applications.
This provides fast, accurate measurement of coating thickness from 0 to 49 mils (0 to 1250 μm). Ideal for paint, plating, and surface inspections, it helps ensure quality control and material compliance in automotive, manufacturing, and industrial applications.
Features
Applications
| Measuring Range | 0 to 49 mils (0 to 1250 μm) |
| Resolution | 0.004 mils (0.1μm) |
| Accuracy | ±3% |
| Minimum Curvature Radius | Ferrous Probe (magnetic induction): 59.06 mils (1.5 mm) Non-Ferrous Probe (eddy current): 118.1 mils (3 mm) |
| Minimum Diameter | Ferrous Probe (magnetic induction): 275.6 mils (7 mm) Non-Ferrous Probe (eddy current): 196.9 mils (5 mm) |
| Minimum Thickness | Ferrous Probe (magnetic induction): 19.69 mils (0.5 mm) Non-Ferrous Probe (eddy current): 11.81 mils (0.3 mm) |
| Sample Rate | Selectable 1 second to 24 hours |
| PC Interface | USB port |
| Power | 2 x AAA batteries |
| Dimensions | 4.3 x 2.0 x 1.0" (110 x 50 x 23 mm) |
| Weight | 3.9 oz (100 g) |
| Measuring Range | 0 to 49 mils (0 to 1250 μm) |
| Resolution | 0.004 mils (0.1μm) |
| Accuracy | ±3% |
| Minimum Curvature Radius | Ferrous Probe (magnetic induction): 59.06 mils (1.5 mm) Non-Ferrous Probe (eddy current): 118.1 mils (3 mm) |
| Minimum Diameter | Ferrous Probe (magnetic induction): 275.6 mils (7 mm) Non-Ferrous Probe (eddy current): 196.9 mils (5 mm) |
| Minimum Thickness | Ferrous Probe (magnetic induction): 19.69 mils (0.5 mm) Non-Ferrous Probe (eddy current): 11.81 mils (0.3 mm) |
| Sample Rate | Selectable 1 second to 24 hours |
| PC Interface | USB port |
| Power | 2 x AAA batteries |
| Dimensions | 4.3 x 2.0 x 1.0" (110 x 50 x 23 mm) |
| Weight | 3.9 oz (100 g) |
