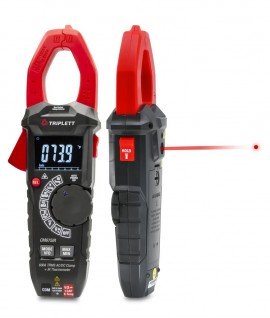

Triplett CM675IR-NIST True RMS AC/DC Clamp Meter with 4:1 IR thermometer, 600A includes Traceable Calibration Certificate

Model: CM675IR-NIST | UPC: 614395004996

Triplett CM675IR-NIST True RMS AC/DC Clamp Meter with 4:1 IR thermometer, 600A includes Traceable Calibration Certificate

Model: CM675IR-NIST | UPC: 614395004996

This clamp meter delivers accurate electrical measurements up to 600A, combined with a built-in 4:1 infrared thermometer for non-contact temperature readings. It provides reliable True RMS performance, enhanced safety, and versatile troubleshooting. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Sale Price	$240.48 USD
Regular Price	$302.49 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Triplett CM675IR-NIST Offers

This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

Features

Built-in laser identifies the target area
6000 count color EBTN (Enhanced Black Twisted Nematic) display provides clear readings at a maximum angle
60-segment analog bargraph for viewing trends
1.3" (33mm) clamp jaw
True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
VFD low pass filter for frequency and harmonic interference when measuring variable frequency drives
Built-in Non-Contact Voltage Detector with LED indicator
Relative Mode displays changes from baseline
Minimum/Maximum captures highest and lowest readings
Data Hold freezes the display
Auto power off conserves battery life
Low battery indication
Built-in flashlight

Triplett CM675IR-NIST Specifications

True RMS	Yes
Color EBTN Display	6000 count with 60-segment analog bargraph
AC/DC Current	600 A
ACA Accuracy	±1.5%
AC/DC Voltage	1000 V
Resistance	60 MΩ
Type K Temperature	-4 to 1800°F (-20 to 1000°C)
Infrared Temperature	-22 to 662°F (-30 to 350°C)
Distance to Target Ratio	4:1
Capacitance	99.99 mF
Frequency	10 kHz
Duty Cycle	20.0 to 80.0%
Continuity	<50 Ω
NCV Detector	>90 V
Power	3 x AAA batteries
Safety Category	CAT IV-600V
Dimensions	9.4 x 1.7 x 2.6" (239 x 44 x 66 mm)
Weight	11.2 oz (318 g)

What's included with the Triplett CM675IR-NIST

Clamp Meter
Traceable Calibration Certificate with full Data and Uncertainties
Test Leads
Type K Thermocouple Bead Probe
Carrying Case
3 x AAA Batteries
One-Year Warranty
