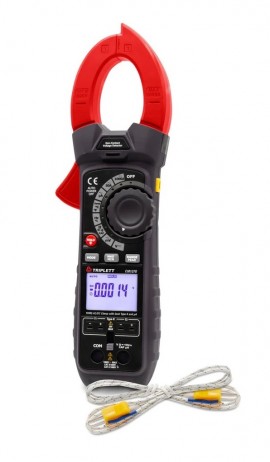

This clamp meter offers precise electrical measurements with advanced functionality, including dual Type-K temperature inputs and microamp (µA) capability for sensitive readings. With a wide temperature range from -148 to 1800°F (-100 to 982.2°C), it delivers reliable True RMS accuracy. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
This clamp meter offers precise electrical measurements with advanced functionality, including dual Type-K temperature inputs and microamp (µA) capability for sensitive readings. With a wide temperature range from -148 to 1800°F (-100 to 982.2°C), it delivers reliable True RMS accuracy. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Features
| True RMS | Yes |
| Display | Dual 50,000 count backlit LCD |
| AC/DC Current | 1000 A |
| ACA Accuracy | ±2.5% |
| AC/DC µA Current | 5000 µA |
| AC/DC Voltage | 600 V |
| Resistance | 50 MΩ |
| Temperature | -148 to 1800°F (-100 to 1000°C) |
| Capacitance | 5 mF |
| Frequency | 10 MHz |
| Duty Cycle | 5 to 95% |
| Continuity | <50 Ω |
| NCV Detector | >90V |
| Peak Capture | >1 ms |
| Jaw Size | 1.9" (48 mm) |
| Power | 9V battery |
| Safety Category | CAT IV-600V |
| Dimensions | 9.1 x 3 x 1.6" (230 x 76 x 40 mm) |
| Weight | 11.1 oz (315 g) |
