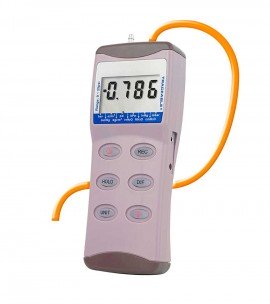

Traceable 3460 Pressure/Vacuum/Gauge Manometer, -5 to 5 psi

Model: 3460 | Order No: 98766-97

Downloads: manual

Traceable 3460 Pressure/Vacuum/Gauge Manometer, -5 to 5 psi

Model: 3460 | Order No: 98766-97

A quick-response manometer with memory key allows for recalling the highest and lowest readings. Measures and displays differential pressure/vacuum in 11 different units, and count-up timer displays up to 99 hours, 59 minutes, 59 seconds. It features a pressure range of -5 to 5 psi.

Sale Price	$252.09 USD
Regular Price	$319.50 USD
Availability	1 to 2 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 3460 Pressure/Vacuum/Gauge Manometer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG2) for only $225.00 USD

Traceable Calibration Certificate for your 3460 Pressure/Vacuum/Gauge Manometer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG2) for only $225.00 USD

Traceable 3460 Offers

Features

Quick-response manometer with memory key allows for recalling highest and lowest readings
Portable unit measures and displays differential pressure/vacuum in 11 different units: psi, mbar, bar, cm/H₂O, inch/H₂O, feet/H₂O, mm/Hg, inch/Hg, kg/cm², oz/inch², kPa
Hose fittings on the unit permit hose/tubing with inside diameters from 1/16 to 3/16"
Count-up timer displays up to 99 hours, 59 minutes, 59 seconds
Response time is 0.5 second
Large ⅝" high digits are visible from 6'
At the touch of a button unit may be zeroed or any pressure may set to zero
Differential feature permits reading the difference of the pressure or vacuum between two different sources
A data hold key freezes the display to capture readings
Brilliant backlighting permits reading even in dark areas
Computer output permits all units to be connected to a computer for monitoring and storing unlimited results

Traceable 3460 Specifications

Maximum Allowed Psi	20 psi
Range	-5.000 to 5.000 psi -345.0 to 345.0 mbar -0.3450 to 0.3450 bar -351.0 to 351.0 cm/H₂O -138.0 to 138.0 in/H₂O -12.00 to 12.00 ft/H₂O -259.0 to 259.0 mm/Hg -10.00 to 10.00 in/Hg -0.350 to 0.350 kg/cm² -80.00 to 80.00 oz/in² -34.50 to 34.50 kPa
Resolution	0.003 psi 0.2 mbar 0.001 bar 0.2 cm/H₂O 0.1 in/H₂O 0.01 ft/H₂O 0.2 mm/Hg 0.01 in/Hg 0.001 kg/cm² 0.05 oz/in² 0.02 kPa
Accuracy	±0.3% of full scale at ±25°C
Display	½", 4-digit LCD
Response Time	0.5 seconds
Operating Temperature	32 to 122°F (0 to 50°C)
Dimensions	2.75 x 7.13 x 1.13"
Weight	5 oz

What's included with the Traceable 3460

Manometer
Traceable® Certificate
Computer Output
Hose/Tubing
Carrying Case
Battery

manual for the Traceable 3460 Pressure/Vacuum/Gauge Manometer, -5 to 5 psi manual for the Traceable 3460 Pressure/Vacuum/Gauge Manometer, -5 to 5 psi

Description ➕➖

Traceable 3460 Offers

Features

Quick-response manometer with memory key allows for recalling highest and lowest readings
Portable unit measures and displays differential pressure/vacuum in 11 different units: psi, mbar, bar, cm/H₂O, inch/H₂O, feet/H₂O, mm/Hg, inch/Hg, kg/cm², oz/inch², kPa
Hose fittings on the unit permit hose/tubing with inside diameters from 1/16 to 3/16"
Count-up timer displays up to 99 hours, 59 minutes, 59 seconds
Response time is 0.5 second
Large ⅝" high digits are visible from 6'
At the touch of a button unit may be zeroed or any pressure may set to zero
Differential feature permits reading the difference of the pressure or vacuum between two different sources
A data hold key freezes the display to capture readings
Brilliant backlighting permits reading even in dark areas
Computer output permits all units to be connected to a computer for monitoring and storing unlimited results

Specifications ➕➖

Traceable 3460 Specifications

Maximum Allowed Psi	20 psi
Range	-5.000 to 5.000 psi -345.0 to 345.0 mbar -0.3450 to 0.3450 bar -351.0 to 351.0 cm/H₂O -138.0 to 138.0 in/H₂O -12.00 to 12.00 ft/H₂O -259.0 to 259.0 mm/Hg -10.00 to 10.00 in/Hg -0.350 to 0.350 kg/cm² -80.00 to 80.00 oz/in² -34.50 to 34.50 kPa
Resolution	0.003 psi 0.2 mbar 0.001 bar 0.2 cm/H₂O 0.1 in/H₂O 0.01 ft/H₂O 0.2 mm/Hg 0.01 in/Hg 0.001 kg/cm² 0.05 oz/in² 0.02 kPa
Accuracy	±0.3% of full scale at ±25°C
Display	½", 4-digit LCD
Response Time	0.5 seconds
Operating Temperature	32 to 122°F (0 to 50°C)
Dimensions	2.75 x 7.13 x 1.13"
Weight	5 oz

Included ➕➖

What's included with the Traceable 3460

Manometer
Traceable® Certificate
Computer Output
Hose/Tubing
Carrying Case
Battery

Resources ➕➖

manual for the Traceable 3460 Pressure/Vacuum/Gauge Manometer, -5 to 5 psi manual for the Traceable 3460 Pressure/Vacuum/Gauge Manometer, -5 to 5 psi
