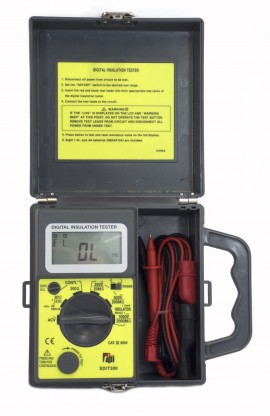

TPI SDIT300 Digital Insulation Resistance Tester with AC volts, 2,000MΩ

Model: SDIT300 | UPC: 637623300066

TPI SDIT300 Digital Insulation Resistance Tester with AC volts, 2,000MΩ-

Downloads: datasheet

More TPI Products

Ask an Expert

TPI SDIT300 Digital Insulation Resistance Tester with AC volts, 2,000MΩ

Model: SDIT300 | UPC: 637623300066

Ideal for performing resistance tests and preventative maintenance.

Ideal for performing resistance tests and preventative maintenance.

Sale Price $269.96 USD
Regular Price $299.95 USD
Availability 4 to 5 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your SDIT300 Digital Insulation Resistance Tester with AC volts

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your SDIT300 Digital Insulation Resistance Tester with AC volts

TPI SDIT300 Offers

Features

  • Easy to use
  • Automatic Discharge
  • Built-in battery test
  • Capable of locking the insturment

Applications

  • Cables
  • Compressors
  • Controls
  • Distribution Transformers
  • Generators
  • Instruments
  • Motors
  • Windings
  • Switchgear

TPI SDIT300 Specifications

Insulation Measuring Ranges 20MΩ / 200MΩ / 2000MΩ
Test Voltages 250V / 500V / 1000V
Basic Accuracy ±3%
Low Resistance Range 2Ω / 20Ω
Basic Accuracy ±3%
AC Voltage Range 200V / 600V
Display Type Digital
Backlight No
Live Circuit Warning Audible / Visual
Power Supply Battery (1.5V x 8)
Fuse Protected Yes (continuity & insulation ranges)
Category CAT III 600V
Click here for complete specifications on the TPI SDIT300

What's Included with the TPI SDIT300

  • TPI SDIT300 Insulation Resistance Tester
  • A085 & A073 Test Leads
  • A122 Neck Strap
  • Instruction Manual
datasheet for the TPI SDIT300 Digital Insulation Resistance Tester with AC volts, 2,000MΩ

TPI SDIT300 Offers

Features

  • Easy to use
  • Automatic Discharge
  • Built-in battery test
  • Capable of locking the insturment

Applications

  • Cables
  • Compressors
  • Controls
  • Distribution Transformers
  • Generators
  • Instruments
  • Motors
  • Windings
  • Switchgear
Show More...

TPI SDIT300 Specifications

Insulation Measuring Ranges 20MΩ / 200MΩ / 2000MΩ
Test Voltages 250V / 500V / 1000V
Basic Accuracy ±3%
Low Resistance Range 2Ω / 20Ω
Basic Accuracy ±3%
AC Voltage Range 200V / 600V
Display Type Digital
Backlight No
Live Circuit Warning Audible / Visual
Power Supply Battery (1.5V x 8)
Fuse Protected Yes (continuity & insulation ranges)
Category CAT III 600V
Click here for complete specifications on the TPI SDIT300

What's Included with the TPI SDIT300

  • TPI SDIT300 Insulation Resistance Tester
  • A085 & A073 Test Leads
  • A122 Neck Strap
  • Instruction Manual
datasheet for the TPI SDIT300 Digital Insulation Resistance Tester with AC volts, 2,000MΩ
