Use this adapter with your existing digital multimeter, clamp-on tester or oscilloscope to monitor the temperature. The adapter can connect with the dual K-type inputs and dual banana plug outputs.
Use this adapter with your existing digital multimeter, clamp-on tester or oscilloscope to monitor the temperature. The adapter can connect with the dual K-type inputs and dual banana plug outputs.

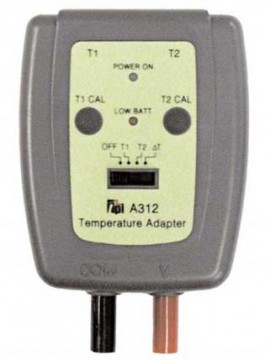

Monitor temperatures on your digital multimeter, clamp-on tester or oscilloscope using this TPI A312 Dual Input K-Type Temperature Adapter. The adapter features dual K-type inputs and dual banana plug outputs for simple connectivity, while the adapter is capable of tracking temperatures from -50 to 1,800°F (-50 to 1,000°C).
Features
| Temperature Range | -50 to 1,800°F (-50 to 1,000°C) |
| Accuracy | ±0.5% of reading + 3.6°F (±0.5% of reading + 2.0°C) |
| Output | 1 mVDC |
| Input Connectors | Dual with K-type sub-mini thermocouple connector |
| Thermocouple | K-type |
| Output Connection Type | Dual banana plug |
| Temperature Range | -50 to 1,800°F (-50 to 1,000°C) |
| Accuracy | ±0.5% of reading + 3.6°F (±0.5% of reading + 2.0°C) |
| Output | 1 mVDC |
| Input Connectors | Dual with K-type sub-mini thermocouple connector |
| Thermocouple | K-type |
| Output Connection Type | Dual banana plug |
