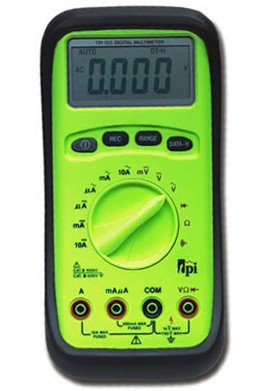

TPI 153 True RMS Digital Multimeter, 750ACV

Model: 153 | UPC: 637623001536

Measures AC V, DC V, AC A, DC A, Resistance, Diodes and Continuity.

Sale Price	$67.46 USD
Regular Price	$74.95 USD
Availability	1 to 2 Weeks2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 153 True RMS Digital Multimeter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMM1) for only $105.00 USD

Traceable Calibration Certificate for your 153 True RMS Digital Multimeter

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIMM1) for only $105.00 USD

Recommended Accessories

TPI A771 Carbon Monoxide Adapter for Digital Multimeters and Clamp-on Meters

A771

TPI 153 Offers

Features

Built to last with rugged exterior
0.3% DCV basic accuracy
0 to 750 ACV; max resolution 1mV
0 to 1,000 DCV; max resolution 0.1mV
0 to 40MΩ; max resolution 0.1Ω
AC/DC amps to 10; max resolution 0.1uA
Autoranging
Min/Max
Data Hold
cULus 61010-1
CAT II – 1000V, CAT III – 600V

Applications

Thermocouples in furnaces or gas applications
Heat anticipator current in thermostats
Line voltage
Voltage of direct drive DC motors
Control circuit voltage
Motor run and start capacitors
Flame safeguard control current
Heating element resistance (continuity)
Compressor winding resistance
Contractor and relay coil resistance
Continuity of wiring
Continuity of circuit breakers
Temperature w/ optional temperature adapter
Bar graph to indicate rapid fluctuations in measurements

TPI 153 Specifications

DC Volts	Maximum Input: 1000V Maximum Resolution: 0.1mV Accuracy: ±0.3%
AC Volts	Maximum Input: 750V Maximum Resolution: 0.001V Accuracy: ±0.8%
DC Amps	Maximum Input: 10A Maximum Resolution: 0.1μA Accuracy: ±0.5%
AC Amps	Maximum Input: 10A Maximum Resolution: 0.1μA Accuracy: ±0.8%
Resistance (Ohms)	Maximum Input: 40MΩ Maximum Resolution: 0.1mΩ Accuracy: ±0.5%
Continuity	Audible at less than 50Ω
Diode	3V at 30µA maximum output
True RMS Responding	No
Conductance	No
Pulse Width	No
Data Hold	Yes
Min/Max Record	Yes
Time Stamp Logging	No
Relative Mode	No
Compare Mode	No
RS-232 Output	No
Process Loop Output	No
Sleep Mode / Auto Off	Yes
Protective Boot	Yes (standard)
Display Type	4000 count LCD
Range Selection	Auto/Manual
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	14 to 122°F (-10 to 50°C)
Humidity	80% non-condensing
Size	6" x 3.1" x 1.2" (187mm x 86mm x 33mm) with boot
Weight	12oz (340g) with boot
Battery Type	9V
Battery Life	500hrs Typical
OverInput Category	CAT III 600V
Agency Approval	cULus 61010-1, IEC 61010-1
Warranty	Limited Lifetime

Click here for complete specifications on the TPI 153

What's Included with the TPI 153

TPI 153 Digital Multimeter
Rubber Boot
Fuse 2A
Fuse 10A
Test Lead Set
9 Volt Alkaline Battery
Instruction Manual

TPI 153 True RMS Digital Multimeter: Overview

In this video, the viewer will receive information on the True RMS digital multimer's key features. Additionally, this tool measures AC V, DC V, AC A, DC A, resistance, diodes, and continuity.
