"Our job is helping you do your job"
Measures AC V, DC V, AC A, DC A, Resistance, Diodes and Continuity.
Measures AC V, DC V, AC A, DC A, Resistance, Diodes and Continuity.
This meter is hand-held, easy to use and built to last. Backed by a 3 year warranty.
Features
Applications
| DC Volts | Maximum Input: 1000V
Maximum Resolution: 0.1mV Accuracy: ±0.3% |
| AC Volts | Maximum Input: 750V
Maximum Resolution: 0.001V Accuracy: ±0.8% |
| DC Amps | Maximum Input: 400mA Maximum
Maximum Resolution: 0.1μA Accuracy: ±0.8% |
| AC Amps | Maximum Input: 400mA Maximum
Maximum Resolution: 0.1μA Accuracy: ±0.8% |
| Resistance (Ohms) | Maximum Input: 40MΩ
Maximum Resolution: 0.1mΩ Accuracy: ±0.5% |
| Continuity | Audible at less than 50Ω |
| Diode | 3V at 30µA maximum output |
| Data Hold | Yes |
| Min/Max Record | Yes |
| Protective Boot | Yes (standard) |
| Display Type | 4000 count LCD |
| Range Selection | Manual |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | 14 to 122°F (-10 to 50°C) |
| Humidity | 80% non-condensing |
| Size | 6" x 3.1" x 1.2" (187mm x 86mm x 33mm) with boot |
| Weight | 12oz (340g) with boot |
| Battery Type | 1.5V "AA" Alkaline (2) |
| Battery Life | 200hrs Typical |
| OverInput Category | CAT III 600V |
| Agency Approval | cULus 61010-1, IEC 61010-1 |
| Warranty | 3 Years |

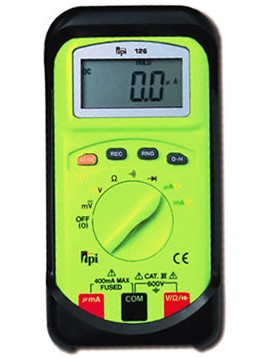

Click on a category to view a selection of compatible accessories with the TPI 126 Compact Autoranging Digital Multimeter, 600ACV.
