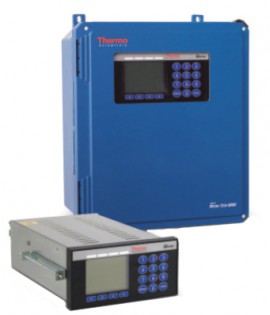

Monitor production output, control product load-out, and track inventory to manage the process effectively and efficiently, this belt scale integrator incorporates advanced electronic design for improved performance and serviceability. Support specific software versions for a variety of weighing and monitoring products.
Monitor production output, control product load-out, and track inventory to manage the process effectively and efficiently, this belt scale integrator incorporates advanced electronic design for improved performance and serviceability. Support specific software versions for a variety of weighing and monitoring products.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Controls and Switches category for similar products.
Or let's do a search and help you find what you need:
State of the art LCD graphic display with four-line display.
Features
Applications
| Communications | Communication Protocols Profibus-DP | Ethernet: Ethernet/IP and Modbus/TCP Built-in USB Port Configuration and data storage Expansion Options, (5) Slots: Optional 4 to 20 mA Out Board (0 to 20 mA or 4 to 20 mA); available in single channel or dual channel Optional Input/Output Expansion Boards: Relay output board (4 outputs); Opto-22 output board (4 outputs); DC input board (3 inputs); Opto-22 input board (3 inputs) Optional Digital Input/Output Board (8 inputs/8 outputs) Optional Analog Input/Output Board (2 inputs/2 outputs) Profibus Board or Standard Comms Board
| Certifications/Compliance | cCSAus, CE approved; SIL-2, Tick Mark, GOST, and other ATEX classifications pending approval |
| Sensitivity | 0.5m V/V to 3.5 m V/V (keyboard selectable) |
| USB Port | Yes |
| Environmental Conditions | Operating Temperature -4 to 140°F (-20 to 60°C) Environmental Tolerances: Relative humidity 80% maximum up to 88°F (31°C) decreasing linearly to 50% at 104°F (40°C) Altitude up to 6,561' (2000 m); Field Mount suitable for outdoor mounting |
| Instrument Front | 3.03 x 2.28" (77 x 58 mm) viewable LCD graphic display for easy reading, continuous backlit for ease of viewing indoors and outdoors; Available menu languages include English, German, Italian and Spanish |
| Load Cell Excitation | 5 VDC &plsmn;10%, 90 mA, minimum load impedance (58 ohm) |
| Load Cell Input | Load cell input circuits (2 each); Number: Up to six (6) 350-ohm load cells in parallel; Cable distance: 200' (61 m) or less without sense, or 3000' (914 m) with sense; Sensitivity: 0.5 to 3.5 mV/V (keyboard selectable); Input Impedance: 1 M-ohm minimum; Maximum Usable Signal: 114% of 3 mV/V; Internal A/D counts: (3 mV/V): 6,440,000, one open collector output for pulse total (default) or alarms |
| Load Cells | Load cell input circuits (2 each); Number: Up to six (6) 350-ohm load cells in parallel; Cable distance: 200' (61 m) or less without sense, or 3000' (914 m) with sense; Sensitivity: 0.5 to 3.5 mV/V (keyboard selectable);Input Impedance: 1 M-ohm minimum; Maximum Usable Signal: 114% of 3 mV/V; Internal A/D counts: (3 mV/V): 6,440,000, one open collector output for pulse total (default) or alarms |
| Material | Chromate mild steel chassis, front panel IP65, DIN 43700 |
| Outputs | One open collector for pulse output (default) or alarms |
| Power Consumption | 50 VA maximum Nominal Voltage: 24 VDC 10%, -15% (user supplied) Nominal Frequency: 24 VDC only, optional AC module available |
| Power Supply | Nominal Voltage: 24 VDC 10%, -15% (user supplied) Nominal Frequency: 24 VDC only, optional AC module available Power Consumption 50 VA maximum Load Cell Excitation Power Supply 5 VDC ±10%, 90 mA, minimum load impedance (58 ohms) |
| Serial Communication Board | Standard Serial Interface: RS-232C provides support for modem; RS-485, 2- and 4-wire multi-drop |
| Type | Belt Conveyor Scale Integrator |
| Communication Ports | USB, Ethernet, RS-232C, RS-485, 2- and 4-wire multi-drop, additinoal expansion options |
| Display Type | LCD |
| Communications | Communication Protocols Profibus-DP | Ethernet: Ethernet/IP and Modbus/TCP Built-in USB Port Configuration and data storage Expansion Options, (5) Slots: Optional 4 to 20 mA Out Board (0 to 20 mA or 4 to 20 mA); available in single channel or dual channel Optional Input/Output Expansion Boards: Relay output board (4 outputs); Opto-22 output board (4 outputs); DC input board (3 inputs); Opto-22 input board (3 inputs) Optional Digital Input/Output Board (8 inputs/8 outputs) Optional Analog Input/Output Board (2 inputs/2 outputs) Profibus Board or Standard Comms Board
| Certifications/Compliance | cCSAus, CE approved; SIL-2, Tick Mark, GOST, and other ATEX classifications pending approval |
| Sensitivity | 0.5m V/V to 3.5 m V/V (keyboard selectable) |
| USB Port | Yes |
| Environmental Conditions | Operating Temperature -4 to 140°F (-20 to 60°C) Environmental Tolerances: Relative humidity 80% maximum up to 88°F (31°C) decreasing linearly to 50% at 104°F (40°C) Altitude up to 6,561' (2000 m); Field Mount suitable for outdoor mounting |
| Instrument Front | 3.03 x 2.28" (77 x 58 mm) viewable LCD graphic display for easy reading, continuous backlit for ease of viewing indoors and outdoors; Available menu languages include English, German, Italian and Spanish |
| Load Cell Excitation | 5 VDC &plsmn;10%, 90 mA, minimum load impedance (58 ohm) |
| Load Cell Input | Load cell input circuits (2 each); Number: Up to six (6) 350-ohm load cells in parallel; Cable distance: 200' (61 m) or less without sense, or 3000' (914 m) with sense; Sensitivity: 0.5 to 3.5 mV/V (keyboard selectable); Input Impedance: 1 M-ohm minimum; Maximum Usable Signal: 114% of 3 mV/V; Internal A/D counts: (3 mV/V): 6,440,000, one open collector output for pulse total (default) or alarms |
| Load Cells | Load cell input circuits (2 each); Number: Up to six (6) 350-ohm load cells in parallel; Cable distance: 200' (61 m) or less without sense, or 3000' (914 m) with sense; Sensitivity: 0.5 to 3.5 mV/V (keyboard selectable);Input Impedance: 1 M-ohm minimum; Maximum Usable Signal: 114% of 3 mV/V; Internal A/D counts: (3 mV/V): 6,440,000, one open collector output for pulse total (default) or alarms |
| Material | Chromate mild steel chassis, front panel IP65, DIN 43700 |
| Outputs | One open collector for pulse output (default) or alarms |
| Power Consumption | 50 VA maximum Nominal Voltage: 24 VDC 10%, -15% (user supplied) Nominal Frequency: 24 VDC only, optional AC module available |
| Power Supply | Nominal Voltage: 24 VDC 10%, -15% (user supplied) Nominal Frequency: 24 VDC only, optional AC module available Power Consumption 50 VA maximum Load Cell Excitation Power Supply 5 VDC ±10%, 90 mA, minimum load impedance (58 ohms) |
| Serial Communication Board | Standard Serial Interface: RS-232C provides support for modem; RS-485, 2- and 4-wire multi-drop |
| Type | Belt Conveyor Scale Integrator |
| Communication Ports | USB, Ethernet, RS-232C, RS-485, 2- and 4-wire multi-drop, additinoal expansion options |
| Display Type | LCD |
