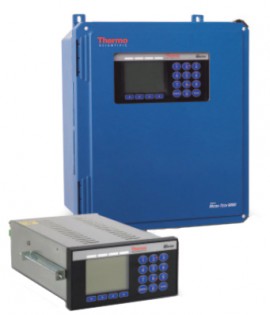

Monitor production output, control product load-out, and track inventory to manage the process effectively and efficiently, this belt scale integrator incorporates advanced electronic design for improved performance and serviceability. Support specific software versions for a variety of weighing and monitoring products.
Monitor production output, control product load-out, and track inventory to manage the process effectively and efficiently, this belt scale integrator incorporates advanced electronic design for improved performance and serviceability. Support specific software versions for a variety of weighing and monitoring products.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Controls and Switches category for similar products.
Or let's do a search and help you find what you need:
State of the art LCD graphic display with four-line display.
Features
Applications
| Communications | Communication Protocols Profibus-DP Ethernet: Ethernet/IP and Modbus/TCP Built-in USB Port Configuration and data storage Expansion Options, (5) Slots: Optional 4 to 20 mA Out Board (0 to 20 mA or 4 to 20 mA); available in single channel or dual channel Optional Input/Output Expansion Boards: Relay output board (4 outputs); Opto-22 output board (4 outputs); DC input board (3 inputs); Opto-22 input board (3 inputs) Optional Digital Input/Output Board (8 inputs/8 outputs) Optional Analog Input/Output Board (2 inputs/2 outputs) Profibus Board or Standard Comms Board |
| Certifications/Compliance | cCSAus, CE approved; SIL-2, Tick Mark, GOST, NTEP |
| USB Port | Yes |
| Environmental Conditions | Operating Temperature -4 to 140°F (-20 to 60°C) |
| Instrument Front | 3.03 x 2.28" (77 x 58 mm) viewable LCD graphic display for easy reading, continuous backlit for ease of viewing indoors and outdoors; Available menu languages include English, German, Italian and Spanish |
| Material | Chromate mild steel chassis, front panel IP65, DIN 43700 |
| Outputs | One open collector for pulse output (default) or alarms |
| Power Consumption | 50 VA maximum Nominal Voltage: 24 VDC 10%, -15% (user supplied) Nominal Frequency: 24 VDC only, optional AC module available |
| Power Supply | Nominal Voltage: 24 VDC 10%, -15% (user supplied) Nominal Frequency: 24 VDC only, optional AC module available Power Consumption 50 VA maximum Load Cell Excitation Power Supply 5 VDC ±10%, 90 mA, minimum load impedance (58 ohms) |
| Serial Communication Board | Standard Serial Interface: RS-232C provides support for modem; RS-485, 2- and 4-wire multi-drop |
| Temperature Sensitivity | 0.5 to 3.5 m V/V (keyboard selectable) |
| Communication Ports | USB, Ethernet, RS-232C, RS-485, 2- and 4-wire multi-drop, additional expansion options |
| Display Type | LCD |
| Communications | Communication Protocols Profibus-DP Ethernet: Ethernet/IP and Modbus/TCP Built-in USB Port Configuration and data storage Expansion Options, (5) Slots: Optional 4 to 20 mA Out Board (0 to 20 mA or 4 to 20 mA); available in single channel or dual channel Optional Input/Output Expansion Boards: Relay output board (4 outputs); Opto-22 output board (4 outputs); DC input board (3 inputs); Opto-22 input board (3 inputs) Optional Digital Input/Output Board (8 inputs/8 outputs) Optional Analog Input/Output Board (2 inputs/2 outputs) Profibus Board or Standard Comms Board |
| Certifications/Compliance | cCSAus, CE approved; SIL-2, Tick Mark, GOST, NTEP |
| USB Port | Yes |
| Environmental Conditions | Operating Temperature -4 to 140°F (-20 to 60°C) |
| Instrument Front | 3.03 x 2.28" (77 x 58 mm) viewable LCD graphic display for easy reading, continuous backlit for ease of viewing indoors and outdoors; Available menu languages include English, German, Italian and Spanish |
| Material | Chromate mild steel chassis, front panel IP65, DIN 43700 |
| Outputs | One open collector for pulse output (default) or alarms |
| Power Consumption | 50 VA maximum Nominal Voltage: 24 VDC 10%, -15% (user supplied) Nominal Frequency: 24 VDC only, optional AC module available |
| Power Supply | Nominal Voltage: 24 VDC 10%, -15% (user supplied) Nominal Frequency: 24 VDC only, optional AC module available Power Consumption 50 VA maximum Load Cell Excitation Power Supply 5 VDC ±10%, 90 mA, minimum load impedance (58 ohms) |
| Serial Communication Board | Standard Serial Interface: RS-232C provides support for modem; RS-485, 2- and 4-wire multi-drop |
| Temperature Sensitivity | 0.5 to 3.5 m V/V (keyboard selectable) |
| Communication Ports | USB, Ethernet, RS-232C, RS-485, 2- and 4-wire multi-drop, additional expansion options |
| Display Type | LCD |
