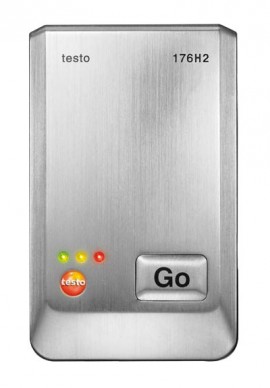

Testo 176 H2 4-Channel Metal Temperature/Humidity Data Logger with 2 external NTC

Model: 176 H2 | Order No: 0572 1766 | UPC: 4029547011177

Downloads: datasheet manual

Testo 176 H2 4-Channel Metal Temperature/Humidity Data Logger with 2 external NTC

Model: 176 H2 | Order No: 0572 1766 | UPC: 4029547011177

Four channel data logger with two external sensor connections for simultaneous temperature and humidity measurements at two sites; and metal housing for monitoring in harsh environmental conditions.

Sale Price	$928.20 USD
Regular Price	$1092.00 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your 0572 1766 4-Channel Metal Temperature/Humidity Data Logger with 2 external NTC

Yes, I would like to add a Traceable Calibration Certificate (Model CERTITH1) for only $305.00 USD

Traceable Calibration Certificate for your 0572 1766 4-Channel Metal Temperature/Humidity Data Logger with 2 external NTC

Yes, I would like to add a Traceable Calibration Certificate (Model CERTITH1) for only $305.00 USD

Recommended Accessories

Testo 0449 0047 USB-A to Mini-B Connection Cable for 330-1, 330-2, and 335 combustion analyzers, 6'

0449 0047

Testo 0572 0576 NFC Thermal Mobile Printer for 184, 175, and 176 series data loggers

0572 0576

Testo 0554 1704 ComSoft Professional Data Logger Software

0554 1704

Testo 0554 1705 ComSoft CFR 21 Part 11 Data Logger Software for 175, 176, and 177 series

0554 1705

Testo 0572 6174 Humidity / Temperature Probe 4 mm

0572 6174

Testo 0628 7507 Flat NTC Wall Surface Thermistor Probe, MiniDin, 9.8' cable

0628 7507

Testo 176 H2 Offers

The perfect data logger for analyzing precise climatic development using long-term measurements.

Features

Conforms to protection class IP 65 and can therefore be exposed to water jets and dust.
Memory for up to 2 million readings, up to 8 years' battery life
Measure humidity and temperature on two channels thanks to its two connections for external sensors
Three software versions are available for measurement data analysis on the PC, basic software can be downloaded free of charge

Applications

Monitoring and documentation of the air conditioning in buildings
Monitoring and documentation of the temperature and humidity in production and in warehouses

Testo 176 H2 Specifications

HUMIDITY (Capacitive)
Measuring range	0 to 100 %RH^*
Accuracy	dependent on selected probe
Temperature (NTC)
Measuring range	-20 to +70°C
Accuracy	±0.2°C (-20 to +70°C)
Accuracy	±0.4°C (Remaining Range)
GENERAL
Protection class	IP65
Channels	4 external
Warranty	2 years
Measuring rate	1 s to 24 h
Operating temperature	-20 to +70°C
Memory	2,000,000 measuring values

Click here for complete specifications on the Testo 176 H2

What's included with the Testo 176 H2

Testo 176 H2 Climate data logger for humidity and temperature
Wall Holder
Lock
Calibration Protocol
Battery

datasheet for the Testo 176 H2 4-Channel Metal Temperature/Humidity Data Logger with 2 external NTC manual for the Testo 176 H2 4-Channel Metal Temperature/Humidity Data Logger with 2 external NTC

Click on a category to view a selection of compatible accessories with the Testo 176 H2 4-Channel Metal Temperature/Humidity Data Logger with 2 external NTC.

Connections

Testo 0449 0047 USB-A to Mini-B Connection Cable for 330-1, 330-2, and 335 combustion analyzers, 6' 0449 0047

6-foot USB-A to USB Mini-B cable for connecting compatible measuring instruments to a PC for data transfer, logger readout, and software programming. Additionally, it is compatible with the 330-1, 330-2, and 335 combustion analyzers.

Printer

Testo 0572 0576 NFC Thermal Mobile Printer for 184, 175, and 176 series data loggers 0572 0576

Battery-operated NFC thermal printer compatible with the 184, 175, and 176 series data loggers. Additionally, it offers press-and-place NFC printing for the 184 series and a USB connection for the 175/176 series, printing temperature, humidity, and shock data with graphs at receiving docks.

Softwares

Testo 0554 1704 ComSoft Professional Data Logger Software 0554 1704

Data logger management software for programming, readout, archiving, and reporting. It is compatible with all data loggers except the 171 series and includes graphic analysis and report creation.

Testo 0554 1705 ComSoft CFR 21 Part 11 Data Logger Software for 175, 176, and 177 series 0554 1705

Validatable, FDA-compliant data logger software featuring digital signatures and full audit trails to meet regulatory requirements. Additionally, it supports both current 175/176 and legacy 175/177 logger series.

Humidity and Temperature Probes

Testo 0572 6172 Humidity / Temperature Probe, 12mm 0572 6172

The humidity/temperature probe is suitable for measuring temperature and relative humidity in storerooms, cold storage areas and work rooms or in air conditioning/ventilation ducts.

Testo 0572 6174 Humidity / Temperature Probe 4 mm 0572 6174

The Testo 0572 6174 thin humidity/temperature probe is suitable for measuring temperature and relative humidity in storerooms and work rooms. The exceptionally small diameter of 4 mm also makes it possible to measure in small holes and narrow passageways.

Surface Temperature Probes

Testo 0628 7507 Flat NTC Wall Surface Thermistor Probe, MiniDin, 9.8' cable 0628 7507

Flat wall surface NTC temperature probe with 9.8 ft (2.79 m) cable and MiniDin connection for measuring wall surface temperatures. Additionally, its compact sensing head accesses restricted locations, measuring -58 to 176°F (-50 to 80°C).

Description ➕➖
