For fast and non-destructive evaluation of material moisture courses in woods and building materials.
For fast and non-destructive evaluation of material moisture courses in woods and building materials.

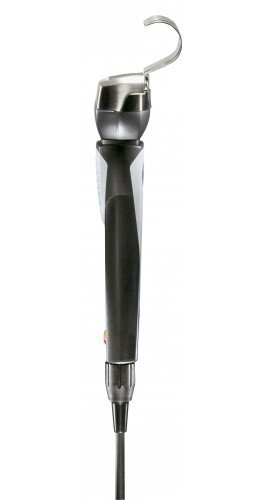

The non-destructive stray field measurement uses the ability of water molecules to dampen and thus change electromagnetic fields. The electric field penetrates the material via the contact plates and creates a measuring field with a depth of approximately 5 cm. The probe is not calibratable.
| Parameters | Water content in weight percent of dry mass |
| Measuring Ranges | Wood: < 50% Building Materials: < 20% |
| Resolution | 0.1% |
| Probe Contact Plate | Integrated |
| Measuring Rate | 0.5 seconds |
| Operating Temperature and Humidity | 5 to 40°C (41 to 104°F) / 10 to 80% RH |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Protection Class | IP30 |
| EC Directive | 2004/108/EC |
| Warranty | 2 years (excepting wearing parts) |
| Parameters | Water content in weight percent of dry mass |
| Measuring Ranges | Wood: < 50% Building Materials: < 20% |
| Resolution | 0.1% |
| Probe Contact Plate | Integrated |
| Measuring Rate | 0.5 seconds |
| Operating Temperature and Humidity | 5 to 40°C (41 to 104°F) / 10 to 80% RH |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Protection Class | IP30 |
| EC Directive | 2004/108/EC |
| Warranty | 2 years (excepting wearing parts) |
