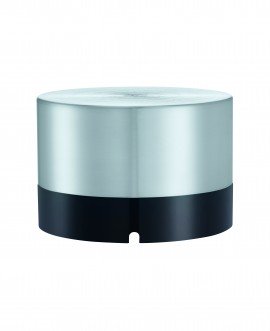

Weighting a flexible probe into direct contact with a freeze dryer shelf, this holder records plate temperature rather than surrounding air. In addition, 8.3 oz (235 g) of mass maintains contact through a full lyophilization cycle. Rated to 158°F, so keep this holder out of autoclave loads running at 250°F.
Weighting a flexible probe into direct contact with a freeze dryer shelf, this holder records plate temperature rather than surrounding air. In addition, 8.3 oz (235 g) of mass maintains contact through a full lyophilization cycle. Rated to 158°F, so keep this holder out of autoclave loads running at 250°F.
Shelf temperature and chamber air temperature are different numbers, and only one of them matters in a lyophilization cycle. This probe holder weights a flexible probe into direct contact with the shelf.
Built for the process
Constructed as a 1.4404 stainless steel body with a PPSU probe seat, rated -58 to 158°F (-50 to 70°C). Designed for the testo 190 and 191 series and their validation accessories.
Features
Applications
| Weight | 8.3 oz (235 g) |
| Dimensions | Ø1.8 x 1.2" (Ø45 x 30 mm) |
| Operating Temperature | -58 to 158°F (-50 to 70°C) |
| Housing Material | Top part: 1.4404 stainless steel, probe seat: PPSU black |
| Weight | 8.3 oz (235 g) |
| Dimensions | Ø1.8 x 1.2" (Ø45 x 30 mm) |
| Operating Temperature | -58 to 158°F (-50 to 70°C) |
| Housing Material | Top part: 1.4404 stainless steel, probe seat: PPSU black |
