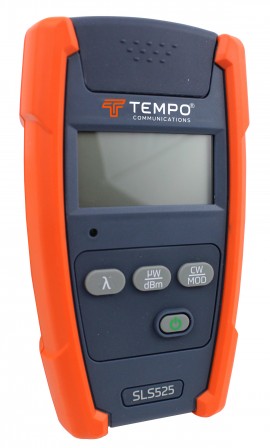

Designed for accurate insertion loss measurements, this dual wavelength LED source operates at 850 and 1300 nm for multimode fiber networks. Moreover, it enables tone and probe testing with Tempo optical power meters, allowing efficient and precise fiber identification during installations or maintenance.
Designed for accurate insertion loss measurements, this dual wavelength LED source operates at 850 and 1300 nm for multimode fiber networks. Moreover, it enables tone and probe testing with Tempo optical power meters, allowing efficient and precise fiber identification during installations or maintenance.
The ruggedized IP54 compliant package provides test confidence when testing singlemode and multimode networks. See Models tab for options as well as Adapters and Accessories.
Features
| Wavelength | 850/1300 nm |
| Range of Use | Multimode |
| Emitter Type | LED |
| Spectral Width | +/-40nm |
| Output Power | -20 dBm/-21 dBm |
| MOD Frequency | 270, 1kHz, 2kHz |
| Display | LCD |
| Battery Life | >20 hours (Typical) |
| Connector Type | SC/PC (Interchangeable LC,ST, FC) |
| Power Supply | 9 V 1000mAh Lithium battery/ 9 V AC adapter |
| Operating Temperature | 14 to 122°F (-10 to 50°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Relative Humidity | 0 to 95% (non-condensing) |
| Dimensions | 6.1 × 3.5 × 1.3" (155 × 89 × 33 mm) |
| Weight | 0.71 lbs (300 g) |
| IP Rating | IP54 |
| Vibration | 5 to 150 Hz Amplitude = 0.15 mm |
| Shock | Peak acceleration 25g at a pulse duration of 6ms |
| Compliance | CE, FCC, 21 CFR 1040.10 (Laser) |
Click on a category to view a selection of compatible accessories with the Tempo SLS525 Dual Wavelength LED Source, multimode, 850 and 1300 nm.
