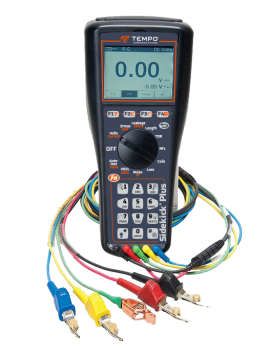

Tempo 1155-5009 Sidekick Plus Copper and DSL Test Set, Wideband

Model: 1155-5009 | UPC: 783310013174

Tempo 1155-5009 Sidekick Plus Copper and DSL Test Set, Wideband

Model: 1155-5009 | UPC: 783310013174

The 1155-5009 Sidekick® Plus Wideband Copper and DSL Test Set helps technicians diagnose and troubleshoot problems with twisted pair cable. Easily install, qualify, and maintain DSL services.

Your Price	$3868.10 USD
Availability	2 to 3 Weeks
Quantity	Quantity

Recommended Accessories

Tempo 1155-0522 Replacement NiMH AA Battery Pack for the Sidekick Plus, 7.2 V

1155-0522

Tempo 1155-0625 Banana Plug Adapter for the Sidekick Plus, RJ45

1155-0625

Tempo 1155-0626 USB Flash Drive for the Sidekick Plus

1155-0626

Tempo 1155-0634 Accessory Bag for the Sidekick Plus, black

1155-0634

Tempo Communications 1155-5009 Offers

Features

Saves time. Easy-to-use mode selection dial and operation - minimizes training needs and saves time on the job.
Versatile. Combines your copper qualification needs with DSL sync and service testing in one test set.
Fully loaded. The Sidekick® Plus xDSL comes complete with all you need to perform tests on the copper networks that support DSL services.
No modules needed – Advanced cable diagnosis and troubleshooting in a single test set
Advanced Dual Trace Pulse TDR (Zero Dead Zone)
Resistive Fault Locator (Detects up to 20MΩ)
1GΩ Leakage Test (Insulation Resistance)
Longitudinal Balance Test
Ground Resistance Test
Quite Line Noise (QLN) Test
Stress Test
AC/DC Voltage
Resistance
Open Meter
Loop Current
Circuit Loss
Tracing Tone Generator
Reference Tone

Tempo Communications 1155-5009 Specifications

Stress Test	0 to 82 dBrnC
AC Voltage	250V
DC Voltage	300V
Resistance	100 Mohm
Leakage	999 Mohm
Open Meter	Up to 18.6 miles (30 km)
Load Coil	0 to 5
Loop Current	110 mA
Circuit Loss	-70 to 3 dBm
Circuit Noise	0 to 90 dBrnC
Tracing Tone Generator	200 Hz to 20 kHz
Reference Tone Output Level	3 to -20 dBm
Custom Auto Test with Pass / Fail	400 Autotest Results
Display	320 x 240 sunlight readable
Battery	Li-Ion
Battery Life	8 hours
Weight	3 lbs (1.4 kg)

What's included with the Tempo Communications 1155-5009

Tempo 1155-5009 Sidekick Plus Copper and DSL Test Set, Wideband

Click on a category to view a selection of compatible accessories with the Tempo 1155-5009 Sidekick Plus Copper and DSL Test Set, Wideband.

Battery Packs

Tempo 1155-0522 Replacement NiMH AA Battery Pack for the Sidekick Plus, 7.2 V 1155-0522

A 7.2V NiMH AA replacement pack designed for the Sidekick Plus, providing reliable power and long-lasting performance in demanding field conditions.

Adapters

Tempo 1155-0625 Banana Plug Adapter for the Sidekick Plus, RJ45 1155-0625

This converts standard RJ45 connections for use with banana plug test leads, enabling flexible interface options with Sidekick Plus and other test equipment.

Flash Drives

Tempo 1155-0626 USB Flash Drive for the Sidekick Plus 1155-0626

A dedicated storage accessory for the Sidekick Plus, designed for reliable data transfer, backup, and convenient portability in field or office applications.

Accessories Bags

Tempo 1155-0634 Accessory Bag for the Sidekick Plus, black 1155-0634

S black carry case for the Sidekick Plus, supplied complete with essential accessories. It provides organized storage, protection, and convenience for technicians in both field and lab environments.
