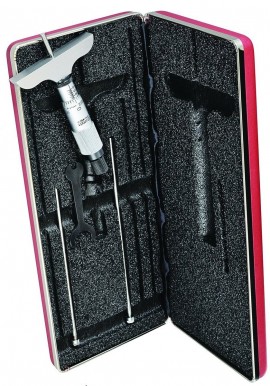

Starrett 440Z-3L Depth Micrometer, 2 to 1/2"

Model: 440Z-3L | UPC: 049659521139

Starrett 440Z-3L Depth Micrometer, 2 to 1/2"

Model: 440Z-3L | UPC: 049659521139

Features a combination ratchet and speeder, ring-type locknut, ratchet stop and locknut. The depths of holes, slots, shoulders and projections can be measured with these fine tools.

Features a combination ratchet and speeder, ring-type locknut, ratchet stop and locknut. The depths of holes, slots, shoulders and projections can be measured with these fine tools.

Your Price $397.00 USD
Availability 8 to 9 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 440Z-3L Depth Micrometer

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 440Z-3L Depth Micrometer

Starrett 440Z-3L Offers

Starrett 440Z-3L has ring-type knurled lock nut for quick and sure locking.

Features

  • The depths of holes, slots, shoulders and projections can be measured with these fine tools
  • 2-1/2" (63.5mm) base and 1/8" (3.2mm) diameter measuring rods
  • Combination ratchet and speeder for uniform pressure and quicker adjustment

Starrett 440Z-3L Specifications

Micrometer Type: Mechanical
Range (in): 0-3"
Graduations (in): .001"
Base Length (in): 2-1/2"
Lock Nut Type: Ring Type Knurled
Measuring Rods (qty): 3
Rod Diameter (in): 1/8"
Thimble Type: Plain
Case Type: Padded Case
Accuracy (in): Mic head +/-.0001"; Rods +/-.0002"

What's included with the Starrett 440Z-3L

  • Starrett 440Z-3L Depth Micrometer, 2 to 1/2"

Starrett 440Z-3L Offers

Starrett 440Z-3L has ring-type knurled lock nut for quick and sure locking.

Features

  • The depths of holes, slots, shoulders and projections can be measured with these fine tools
  • 2-1/2" (63.5mm) base and 1/8" (3.2mm) diameter measuring rods
  • Combination ratchet and speeder for uniform pressure and quicker adjustment

Starrett 440Z-3L Specifications

Micrometer Type: Mechanical
Range (in): 0-3"
Graduations (in): .001"
Base Length (in): 2-1/2"
Lock Nut Type: Ring Type Knurled
Measuring Rods (qty): 3
Rod Diameter (in): 1/8"
Thimble Type: Plain
Case Type: Padded Case
Accuracy (in): Mic head +/-.0001"; Rods +/-.0002"

What's included with the Starrett 440Z-3L

  • Starrett 440Z-3L Depth Micrometer, 2 to 1/2"
