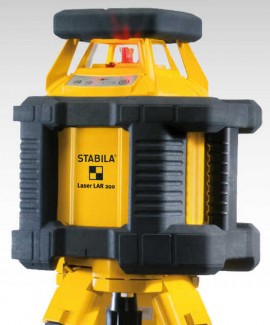

Stabila LAR 200 Exterior Rotating Laser

Model: LAR 200 | Order No: 05500 TR | UPC: 089634055006

Downloads: datasheet manual

Stabila LAR 200 Exterior Rotating Laser

Model: LAR 200 | Order No: 05500 TR | UPC: 089634055006

The exterior rotating laser is an easy-to-use one-button simple self-leveling laser with a digital receiver for accurate horizontal/leveling outdoors.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

Stabila 05700 TR LAR 350 Dual Slope Rotating Laser Level

Model: 05700 TR

This rotating laser level makes it easy to establish quick, accurate and easy measurements. A motion sensor allows ease of use.

Learn More

Not what you're looking for? Let’s do a search and help you find what you need.

Stabila LAR 200 Offers

The exterior rotating laser has a waterproof and dustproof in accordance with protection class IP 65.

Features

Fully automatic servo-controlled rotation laser for horizontal applications
Extremely tough thanks to the STABILA Protector System that is patented in many countries – if the laser and tripod are knocked over – Just set up the tripod again, switch on and start measuring
Heat-resistant and cold-resistant - This leveling system is designed for outdoor high risk construction applications
Extremely large working area with receiver up to 1,800'/550 m diameter
Digital receiver with clamp shows how far off you are from the control point with decimal, fraction and millimeter displays. The receiver is designed to withstand a 10ft drop and is certified: IP67 dust and water proof. In addition, there is visual and audio guidance as well as front and back displays
Compatible with commercially available machine controllers
0.625 - 11 tripod mount

Applications

This tool is designed specifically for high risk outdoor horizontal leveling applications where it will be exposed to construction traffic and extreme weather conditions

Stabila LAR 200 Specifications

Laser Class	3R
Output	< 5 mW
Laser Wavelength	65 nm
Self-Leveling Range +/-	5°
Leveling Accuracy +/-	0.125" @ 100'
Diameter of Working Area for Set Receiver	1800'
Operating Life	120 h
Protection Class	IP 65
Tripod Connection	0.625"-11

Click here for complete specifications on the Stabila LAR 200

What's included with the Stabila LAR 200

Stabila LAR 200 Exterior Rotating Laser

datasheet for the Stabila LAR 200 Exterior Rotating Laser manual for the Stabila LAR 200 Exterior Rotating Laser
